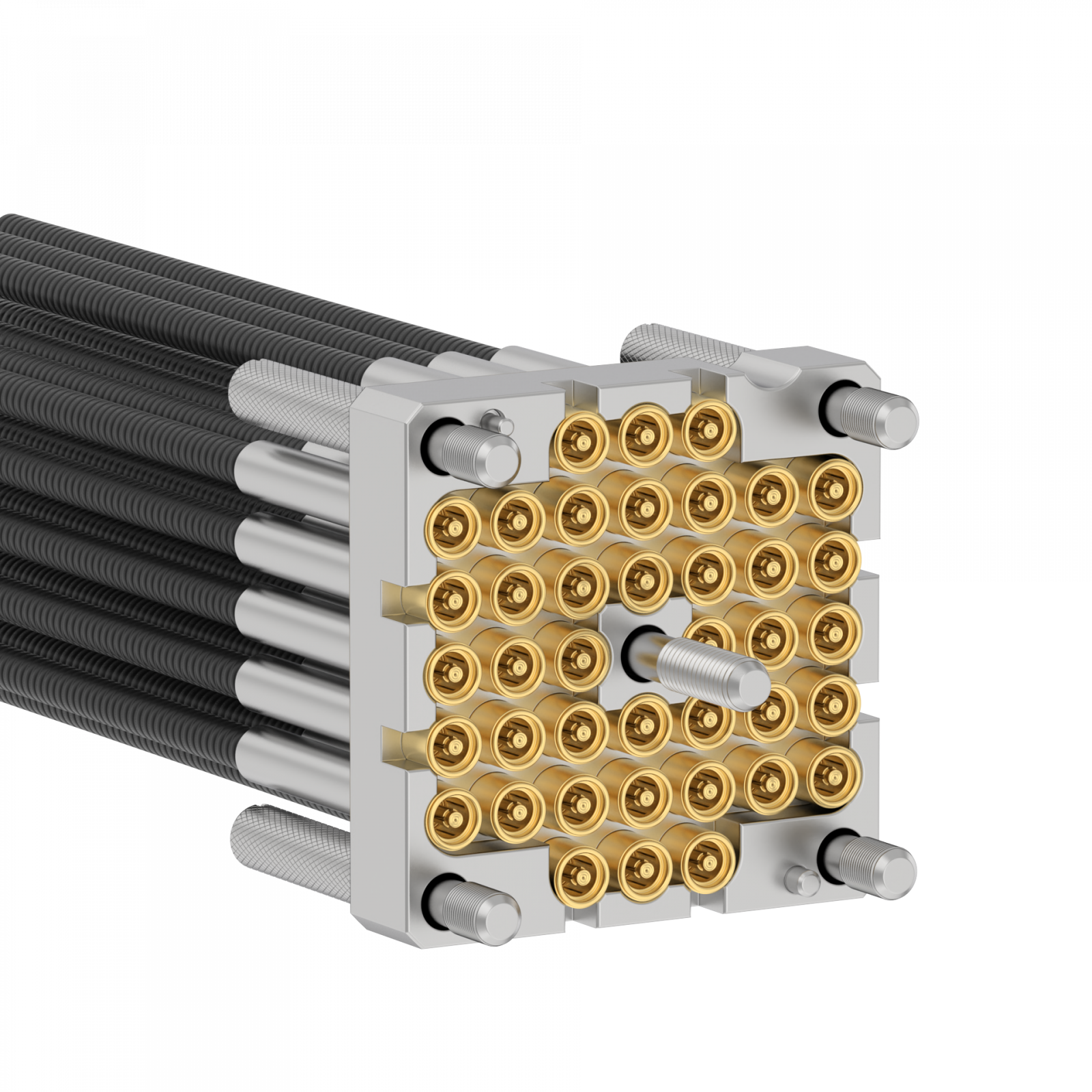

F2C-40 (FLOATING CRYOGENIC CLUSTER) Handout

Performances

  • Guiding and floating structure:
    • Outer conductor floating range: 0.15 mm
    • Center conductor floating range: 0.15 mm
  • High-density: 40 Pin in 30*30 mm board, pitch = 3.5 mm
  • C/A: Flexible and non-magnetic cable assemblies
  • Frequency: Typ. 18 GHz
