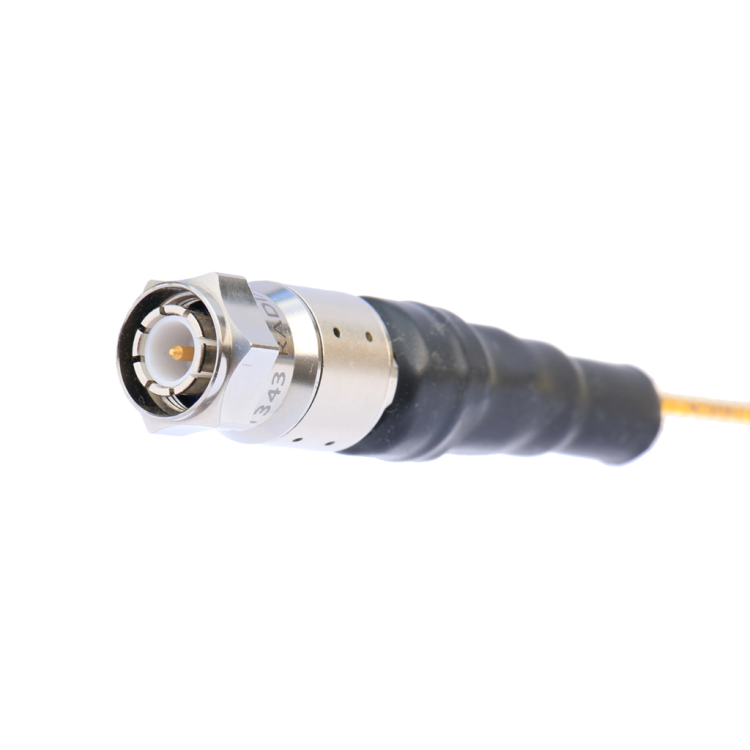

TNC self-lock connector for civil aerospace

TNC Self-lock

View Products
Screw-on self-locking connector, operating in the range DC-11 GHz.
50 ohms / part series R143
TNC self-lock was designed in 2011 for airborne systems and is based on the TNC interface. The range only includes cable plugs which are fully compatible with any standard TNC receptacle.

Resources

Document Download
TNC Catalog
View All Documents

Performances

Features:

  • Impedance : 50Ω
  • Frequency range : DC ~ 11 GHz
  • Durability : 250 mating cycles min.
  • Power rating at 1 GHz : 1000W
  • Temperature range : -65°C / +150°C

Dimensions:

  • The outer diameter of the interface is approx 9.70mm
