Simplification is Our Innovation

A High Density Solution for the Future of Test & Measurement

21
January 2025

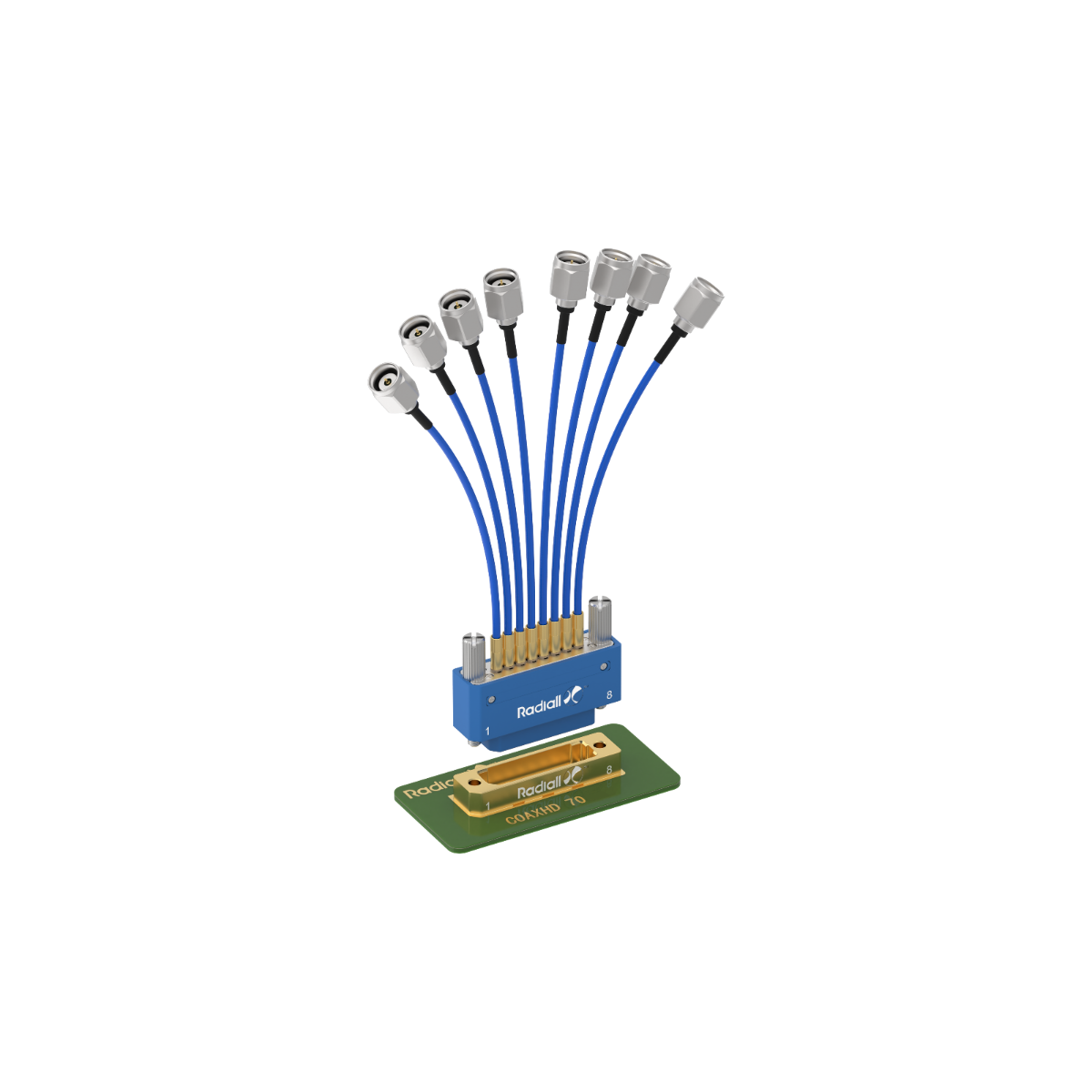

Radiall has announced the launch of the COAXHD70 family, a groundbreaking addition to its portfolio for the Test & Measurement market. Designed to support signal transmission up to 70 GHz and data rates as high as 224 Gbps, the COAXHD70 family is set to redefine high-speed testing with its innovative features and robust reliability.

Key Features & Benefits

The COAXHD70 family delivers industry-leading performance and versatility with features tailored for demanding applications:

  • Ultra-High Frequency Range: Supports DC to 70 GHz, making it ideal for high-speed chipset and device verification, as well as optical transceiver testing.

  • Surface-Mount Technology (SMT): Facilitates efficient PCB mounting and integration.

  • Compact, High-Density Design: Includes the option of 8 coaxial contacts with a 3.0 mm pitch or 16 coaxial contacts, ensuring high-density solutions for space-constrained setups.

  • Solderless Connection: Spring-loaded inner and outer coaxial contacts offer hassle-free, tool-free installation and secure connections.

  • Robust Locking Mechanism: Jackscrew locks and a retention clip provide exceptional stability and repeatability, maintain RF performance through 1,000 mating cycles.

  • Customizable and Flexible: Standard lengths of 152 mm and 305 mm are available, with options for customization to meet specific requirements.

Unmatched Applications in Test & Measurement

The COAXHD70 family excels in applications demanding high-speed, high-fidelity signal integrity, such as:

  • High-Speed Chipset Verification: Ensures the performance of advanced chipsets in demanding environments.

  • Device Verification: Provides reliable, repeatable testing for cutting-edge electronic devices.

  • Optical Transceiver Verification: Delivers consistent performance for optical communication testing at the highest data rates.

Ease of Use & Reliability

Designed with engineers in mind, the COAXHD70 family simplifies testing processes with tool-free installation and individual line replacement, ensuring minimal downtown and maximum efficiency. The spring-loaded solderless contacts and robust looking mechanisms guarantee secure connections, even in rigorous testing scenarios.

With its innovative design and unparalleled performance, Radiall’s COAXHD70 family stands at the forefront of high-speed, high-density testing solutions. Whether verifying chipsets, devices or optical transceivers, the COAXHD70 series ensures reliability, reliability and precision for the most demanding Test & Measurement applications.
