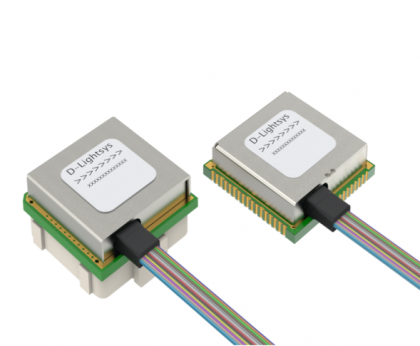

D-Light
D-Light family offers the highest channel integration density. This family has been designed for direct integration with highspeed FPGAs & SERDES to enable state of the art data & signal processing applications.
Description
Specifications
- 4Tx and 4Rx lanes per device
- 12Tx or 12Rx lanes per device
- Data rate up to 12Gbps
- Multimode 850nm wavelength laser
- MT ruggedized terminations (Q-MTitan, C-MTitan, MT…)
- OM3 Ribbon fiber
- Surface mount or pluggable packaging
- Full monitoring: equalizer, pre-emphasis…
- Performances optimized over all the temperature range -40 / +90°C
Resources
| Document | Download |
| 10GB/s Multiple Channel Optical Transceivers For Harsh Environment Applications White Paper | |
| 10+Gbps Multi-Channel Transceivers Catalog | |
|
Channels |
Performances |
Packaging |
|
|
|
|
|
TX |
RX |
Data Range |
Optical Power (Min) |
Sensitivity (Max) |
Link Budget (Min) |
GM |
LC |
Product Brief |
| D |
M4 |
255 |
GM |
4 |
4 |
up to 4.25 Gbps |
-2 dBm |
-15 dBm |
13 dB |
|
|
|
| D |
M4 |
1000 |
GM |
4 |
4 |
up to 12 Gbps |
-2 dBm |
-12 dBm |
10 dB |
|
|
|
| D |
R12 |
255 |
GM |
12 |
|
up to 4.25 Gbps |
- |
-14 dBm |
|
|
|
|
| D |
R12 |
1000 |
GM |
12 |
|
up to 10.3 Gbps |
- |
-10 dBm |
|
|
|
|
| D |
R12 |
1000 |
LL |
12 |
|
up to 12 Gbps |
- |
-10 dBm |
|
|
|
|
| D |
T12 |
255 |
GM |
12 |
|
up to 4.25 Gbps |
-2 dBm |
|
|
|
|
|
| D |
T12 |
1000 |
GM |
12 |
|
up to 10.3 Gbps |
-2 dBm |
|
|
|
|
|
| D |
T12 |
1000 |
LL |
12 |
|
up to 12 Gbps |
-2 dBm |
|
|
|
|
|
