Rectangular multipin connectors for the civil and defense aerospace markets

Rectangular Multipin Connectors with LuxCis® ARINC 801

View Products

Capitalizing on its expertise in rectangular connectors, along with the industry standard LuxCis® ARINC 801 Fiber Optic contact, Radiall provides unrivaled high performance and reliable interconnect solutions for the civil and defense aerospace markets.

Resources

Document Download
LuxCis® ARINC 801 Contacts Catalog
LuxCis® ARINC 801 Interconnect Solutions Catalog
LuxCis® Handout
View All Documents

Performances

High optical and mechanical performance:

  • Multimode, PC: IL: 0.1 dB / RL > 20 db
  • Singlemode, APC: IL: 0.2 dB / RL > 65 dB
  • Temperature range: -55°C to +125°C

Our solutions include:

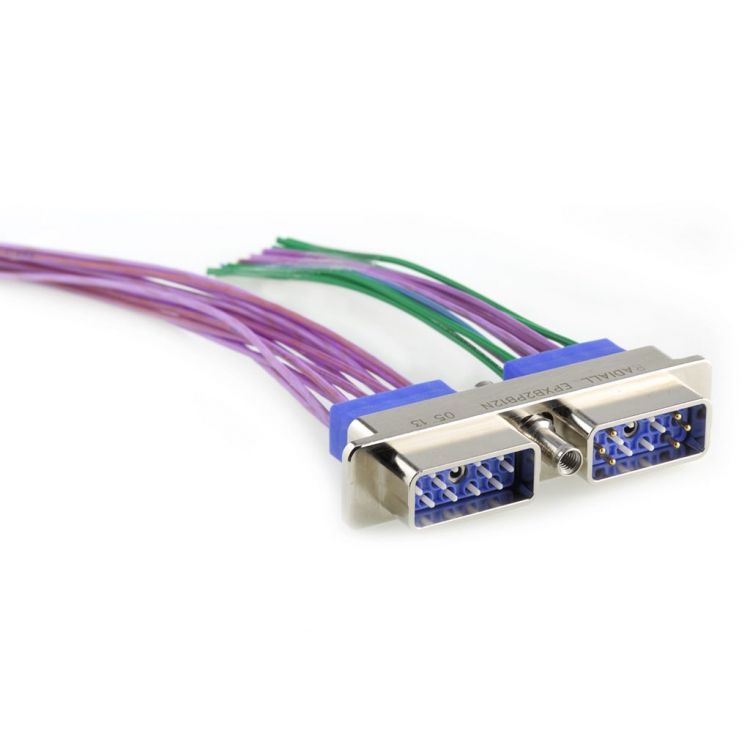

  • EPX® (EN4644): Expandable and modular solution with wide variety of shell, material and plating
  • QM: Modular and tool less solution for disconnect applications
  • NSX (Arinc 600): Rack and panel connector series that have been entrusted by the major aircraft manufacturers for many decades
  • QuckFusio™: revolutionary miniature connector
