Attenuators

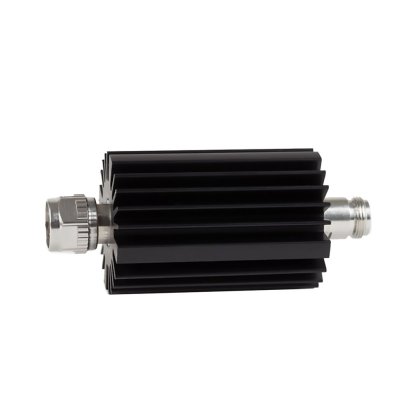

Radiall's coaxial fixed attenuators offer excellent reliability and repeatability from DC to 67 GHz. It includes low, medium and high power attenuators, and a platinum range with the lowest VSWR dedicated for instrumentation applications.

Coaxial Attenuators

Here are the main features of Radiall attenuators:

  • Power range from 0.5 W to 150 W
  • Frequency from DC up to 67 GHz
  • Attenuation values from 0 up to 60 dB
  • High repeatability
  • 50Ω Impedance
  • Compatibility with all standard connectors interfaces: BNC, QN, N, 7/16, SMA, SMB, TNC, SMA2.9, 2.4mm, 1.85mm
  • Dedicated Platinum range for instrumentation applications
