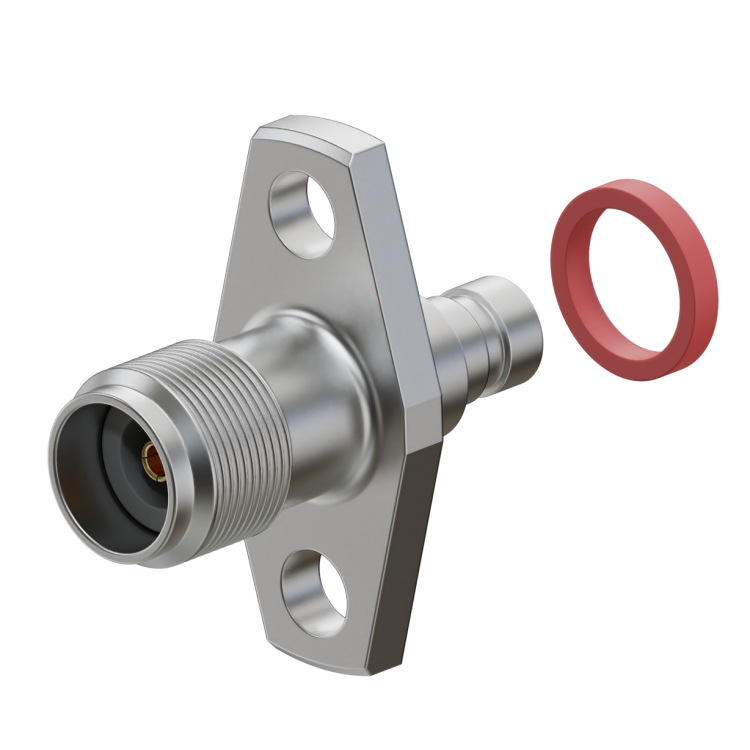

SMPMS-LOCK MALE - SMA2.9 FEMALE STRAIGHT PANEL ADAPTER
R191851650 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R191851650
Interface I SMPM-LOCK
Product Type ADAPTERS
Connector Type JACK/JACK
Space Standard RAD-GEN
Max Frequency (GHz) 40
Panel Mounting 2 HOLE FLANGE
Center Contact Plating GOLD OVER NICKEL
Body Plating PASSIVATED
Geometry STRAIGHT
Gender 1 MALE
Gender 2 FEMALE
Mating System SCREW-ON
Impedance (Ohm) 50
Interface II SMA 2.9
