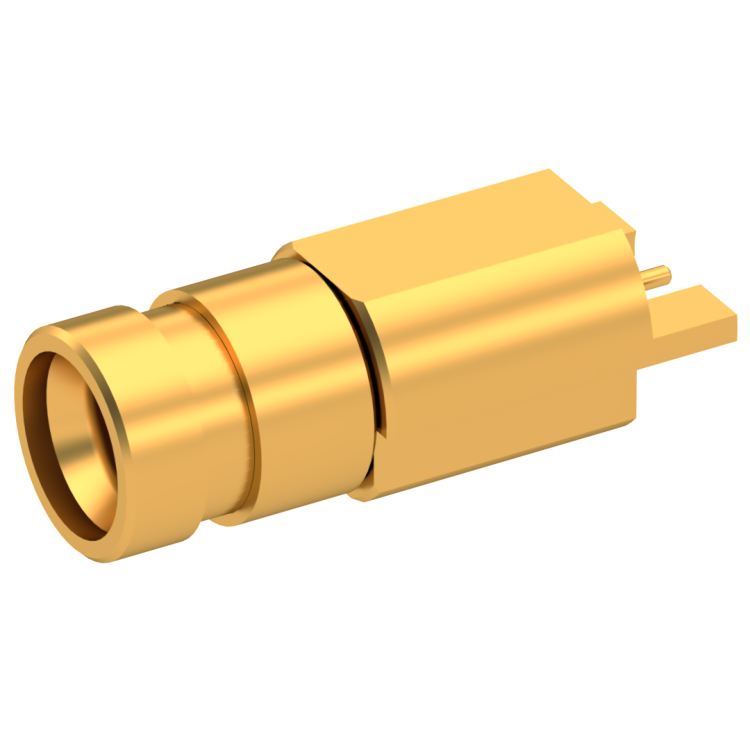

SMPMS-LOCK M EDGE CARD STRAIGHT RECEPTACLE LIMITED DETENT

RS06L00000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
3D.IGS
3D.STEP
SMPMS-LOCK M EDGE CARD STRAIGHT RECEPTACLE LIMITED DETENT

RS06L00000

Model PCB RECEPTACLE

Interface I SMPM

Product Type CONNECTORS

Connector Type JACK

Space Standard ORBIX New Space

Max Frequency (GHz) 65

PCB Mounting SURFACE MOUNT

Center Contact Plating N2PGR

Body Plating N2PGR

Geometry EDGE CARD

Gender 1 MALE

Mating System LOCK-ON

Impedance (Ohm) 50

Click here to check availability
