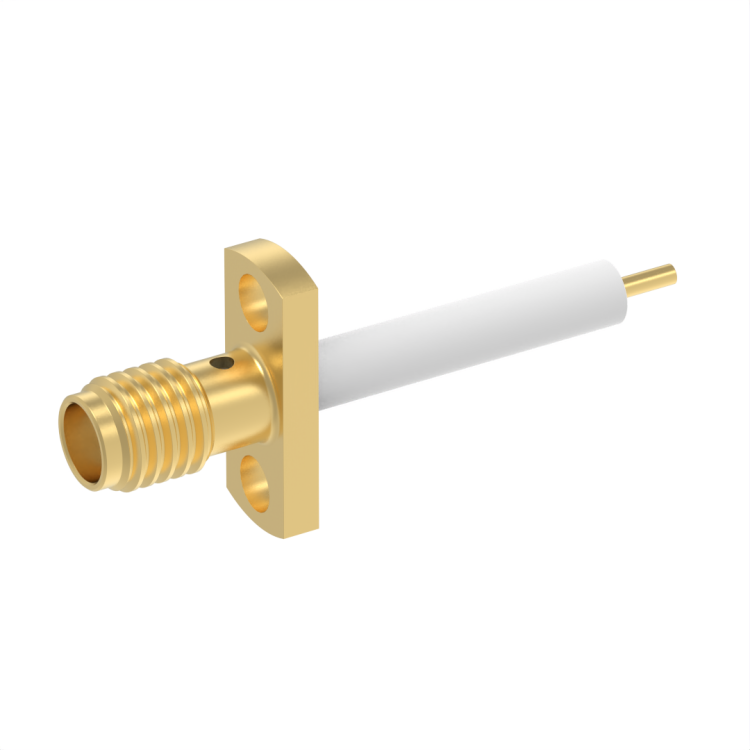

ESCC340200530B105

R122464020

Product Type: CONNECTORS

Panel Mounting: 2 HOLE FLANGE

Gender 1: FEMALE

Max Frequency (GHz): 18

Center Contact Plating: GOLD OVER NICKEL

ESCC parts: Yes

Body Plating: GOLD OVER COPPER

Geometry: STRAIGHT

Center Contact Termination: CYLINDRICAL

Mating System: SCREW-ON

Connector Type: JACK

Impedance (Ohm): 50

Interface I: SSMA

Model: PANEL RECEPTACLE

Click here to check availability
OR
ESCC340200530B105

R122464020 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
