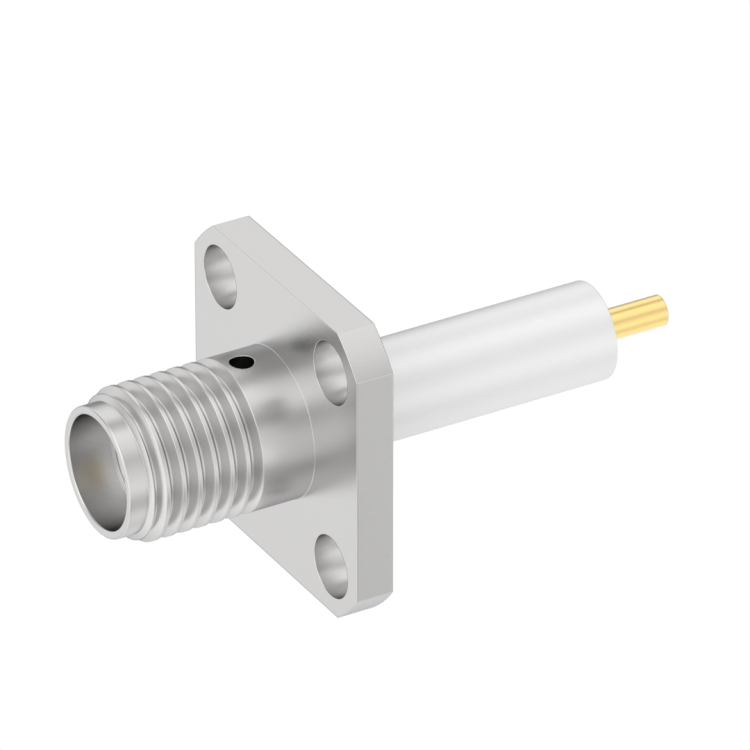

ESCC340200229B315D90B12D70B

R126414001

Product Type: CONNECTORS

Panel Mounting: 4 HOLE FLANGE

Gender 1: FEMALE

Max Frequency (GHz): 18

Center Contact Plating: GOLD OVER NICKEL

ESCC parts: Yes

Body Plating: STAINLESS STEEL PASSIVATED

Geometry: STRAIGHT

Center Contact Termination: CYLINDRICAL

Mating System: SCREW-ON

Connector Type: JACK

Impedance (Ohm): 50

Interface I: SMA

Model: PANEL RECEPTACLE

OR
ESCC340200229B315D90B12D70B

R126414001 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
