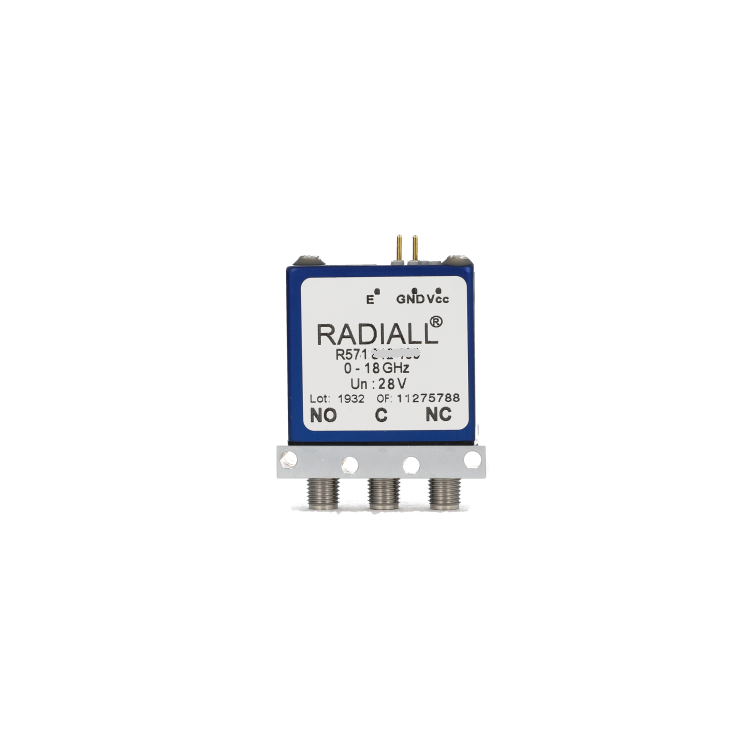

Cryogenic SPDT Ramses SMA 18GHz Latching 28Vdc Pins Terminals Bipolar Actuator Command

R571433141 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cryogenic SPDT Ramses SMA 18GHz Latching 28Vdc Pins Terminals Bipolar Actuator Command

R571433141

RF Configuration SPDT switches

Series CRYOGENIC, RAMSES

Terminated Non terminated

RF Connector SMA

Frequency Range DC - 18 GHz

Actuator Type Latching

Actuator Voltage 28

Number Ways 2

Electronic Option Bipolar actuator command

TTL Options Without TTL driver

Actuator Terminal Solder pins

Specific Feature Cryogenic

Click here to check availability
