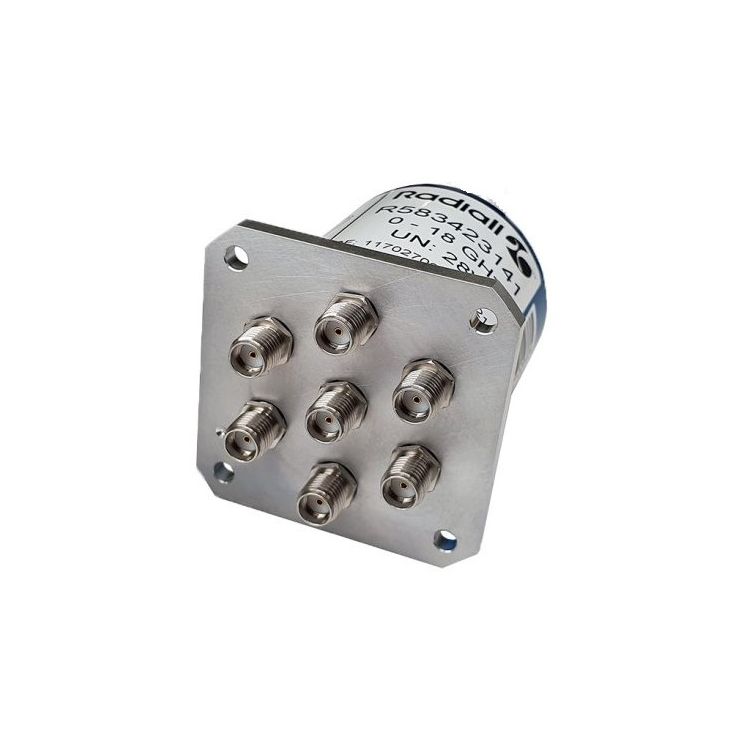

Cryogenic SP6T Subminiature SMA 18GHz Latching 12Vdc Pins Terminals Bipolar Actuator Command

R5927B2141 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
Cryogenic SP6T Subminiature SMA 18GHz Latching 12Vdc Pins Terminals Bipolar Actuator Command

R5927B2141

RF Configuration SPnT multiport switches

Series CRYOGENIC, RAMSES

Terminated Non terminated

RF Connector SMA

Frequency Range DC - 18 GHz

Actuator Type Latching

Actuator Voltage 12

Number Ways 6

Electronic Option Bipolar actuator command

TTL Options Without TTL driver

Actuator Terminal Solder pins

Specific Feature Cryogenic
