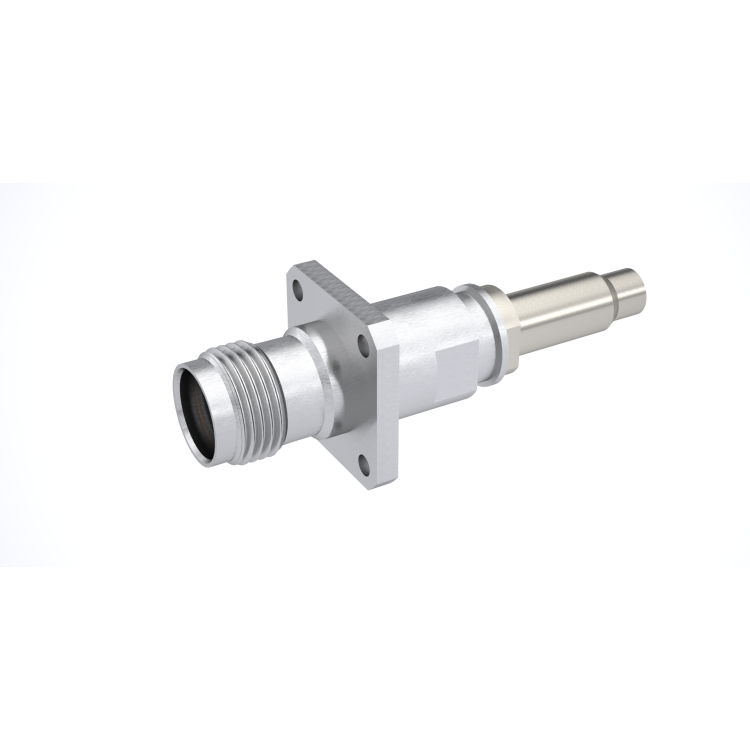

TNC / STRAIGHT SQUARE FLANGE JACK SOLDER TYPE - CABLE 3.85/50 S
R143288111 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R143288111
Brand RADIALL
Product Type Connectors
Interface I TNC
Model CABLE CONNECTOR
Max Frequency (GHz) 11
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 4 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Cable Standard ASNE0691-WM, EN4604-006 (WM)
Cable Attachment SOLDER TYPE
Cable Groups 3.85/50 S
Mating System SCREW-ON
Center Contact Plating GOLD 2.5 OVER NICKEL 2
Body Plating PASSIVATED
