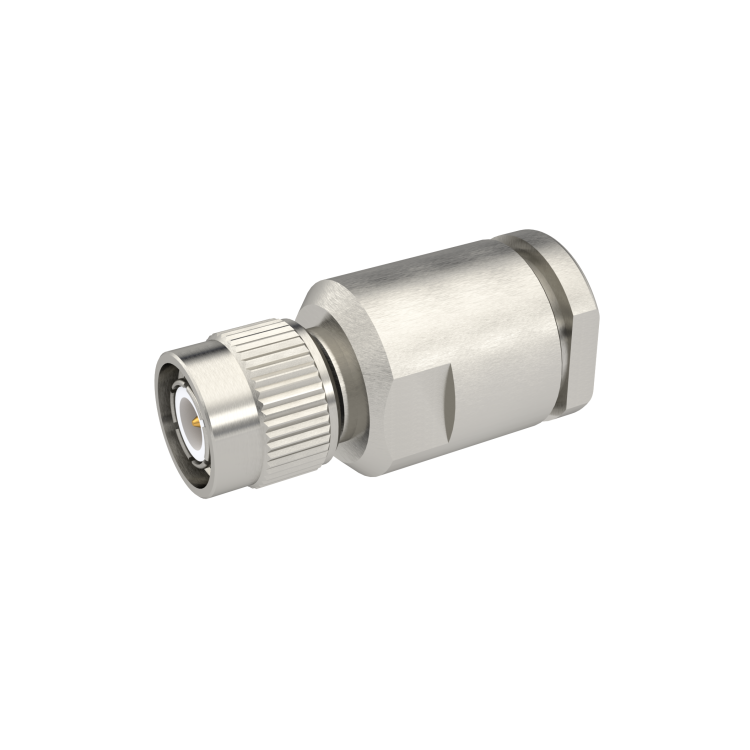

TNC / STRAIGHT PLUG CLAMP TYPE CABLE 10+11/50

R143018000

Brand: RADIALL

Product Type: Connectors

Interface I: TNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KX 13, KX 4, RG 213, RG 214, RG 225, RG 393

Cable Attachment: CLAMP TYPE

Cable Groups: 10/50 D, 10/50 S, 11/50 D, 11/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
TNC / STRAIGHT PLUG CLAMP TYPE CABLE 10+11/50

R143018000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
Cabling Instructions
3D.IGS
3D.STEP
