TNC / STRAIGHT JACK FEMALE SOLDER CLAMP FOR .141''/50 SR NICKEL REAR MOUNT|PANEL SEALED

6001-7041-009 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cabling Instructions

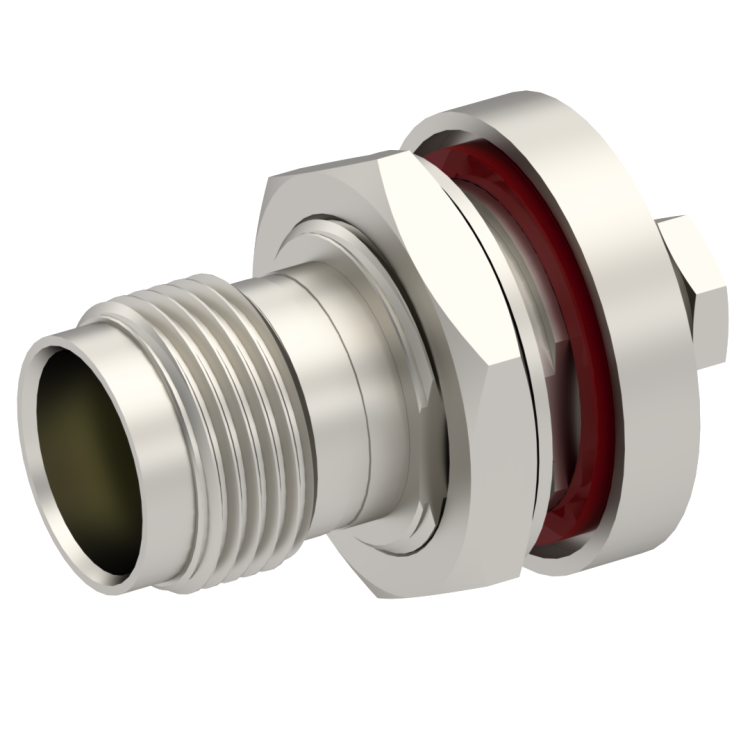

TNC / STRAIGHT JACK FEMALE SOLDER CLAMP FOR .141''/50 SR NICKEL REAR MOUNT|PANEL SEALED

6001-7041-009

Brand AEP

Product Type Connectors

Interface I TNC

Model CABLE CONNECTOR

Specific Feature PANEL SEALED

Max Frequency (GHz) 11

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Cable Standard KS 2|RG 402|M17/130

Cable Attachment SOLDER CLAMP

Cable Groups .141''/50 SR

Mating System SCREW-ON

Body Plating NICKEL
