TNC / STRAIGHT JACK FEMALE SOLDER CLAMP FOR .085''/50 SR GOLD FRONT MOUNT|PANEL SEALED

6002-1041-010 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cabling Instructions

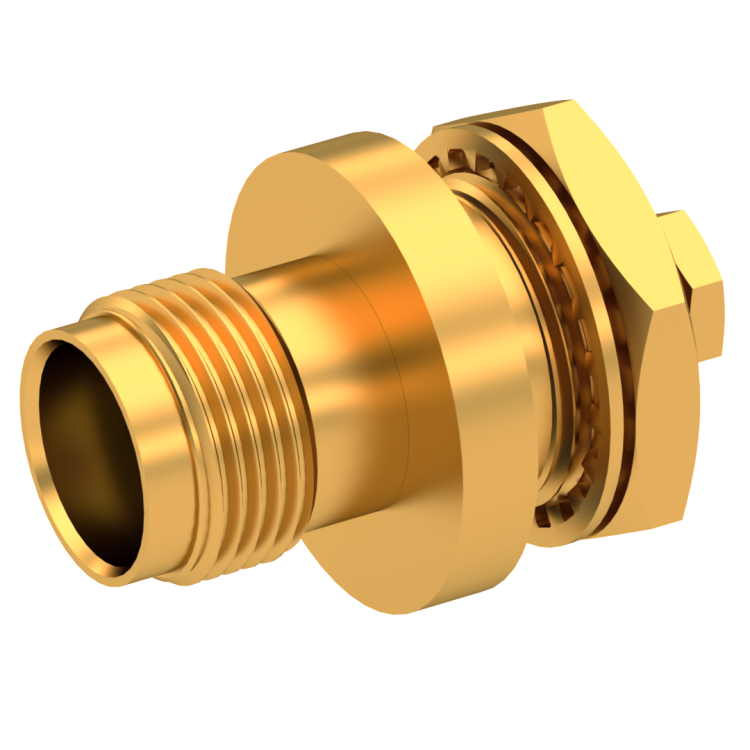

TNC / STRAIGHT JACK FEMALE SOLDER CLAMP FOR .085''/50 SR GOLD FRONT MOUNT|PANEL SEALED

6002-1041-010

Brand AEP

Product Type Connectors

Interface I TNC

Model CABLE CONNECTOR

Specific Feature PANEL SEALED

Max Frequency (GHz) 11

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Cable Standard RG 405|M17/133

Cable Attachment SOLDER CLAMP

Cable Groups .085''/50 SR

Mating System SCREW-ON

Body Plating GOLD

Click here to check availability
