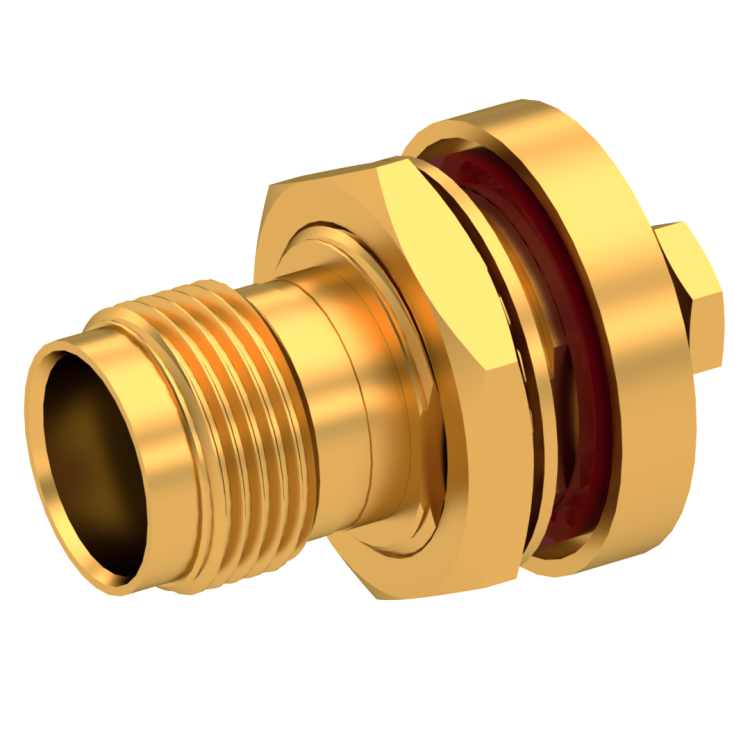

TNC / STRAIGHT JACK FEMALE CLAMP TYPE FOR 2.6/50 D CABLE GOLD REAR MOUNT|PANEL SEALED

6001-1051-019 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cabling Instructions
TNC / STRAIGHT JACK FEMALE CLAMP TYPE FOR 2.6/50 D CABLE GOLD REAR MOUNT|PANEL SEALED

6001-1051-019

Brand AEP

Product Type Connectors

Interface I TNC

Model CABLE CONNECTOR

Specific Feature PANEL SEALED

Max Frequency (GHz) 11

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Cable Standard RD 316|RG 174DS|RG 316DS|M17/152

Cable Attachment CLAMP TYPE

Cable Groups 2.6/50 D

Mating System SCREW-ON

Body Plating GOLD
