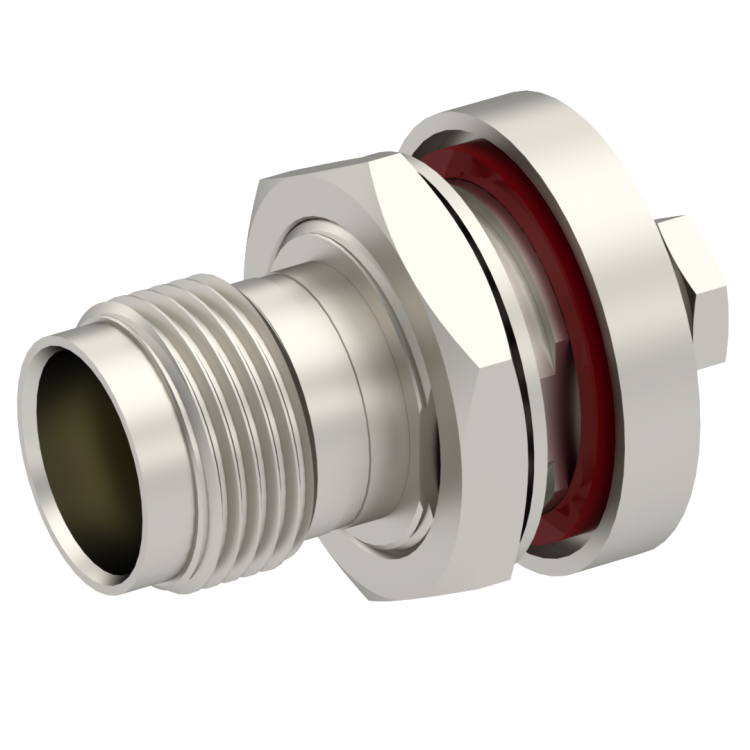

TNC / STRAIGHT JACK FEMALE CLAMP TYPE FOR 2/50 S CABLE NICKEL REAR MOUNT|PANEL SEALED

6001-7051-002

Brand: AEP

Product Type: Connectors

Interface I: TNC

Model: CABLE CONNECTOR

Specific Feature: PANEL SEALED

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: RG 178|RG 196|M17/93|M17/169

Cable Attachment: CLAMP TYPE

Cable Groups: 2/50 S

Mating System: SCREW-ON

Body Plating: NICKEL

OR
TNC / STRAIGHT JACK FEMALE CLAMP TYPE FOR 2/50 S CABLE NICKEL REAR MOUNT|PANEL SEALED

6001-7051-002 - Please contact Radiall for additional information

For REACH and RoHS status, contact Radiall for more information
