Simplification is Our Innovation

TNC / STRAIGHT JACK FEMALE CLAMP TYPE FOR 2/50 D CABLE NICKEL REAR MOUNT|PANEL SEALED

6001-7051-005 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Cabling Instructions

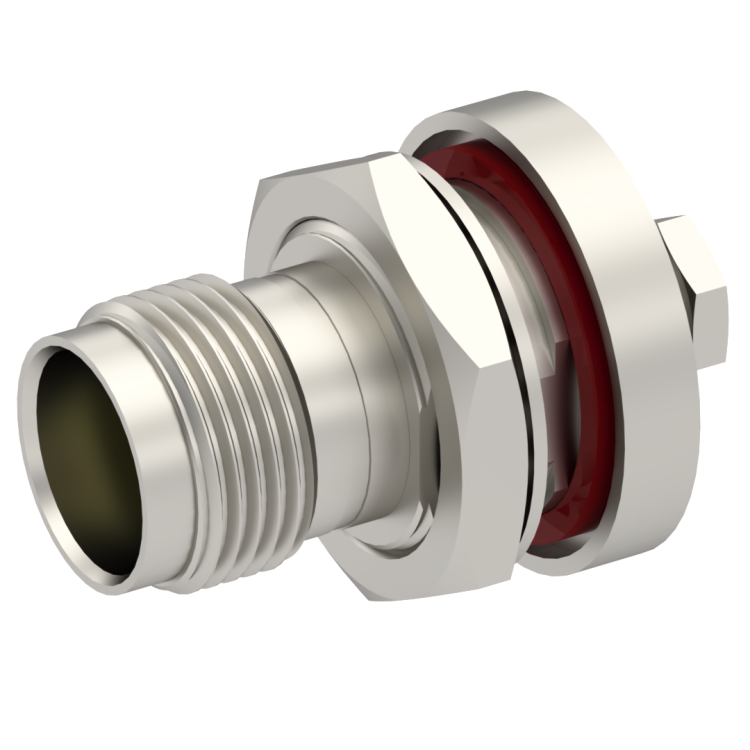

TNC / STRAIGHT JACK FEMALE CLAMP TYPE FOR 2/50 D CABLE NICKEL REAR MOUNT|PANEL SEALED

6001-7051-005

Brand AEP

Product Type Connectors

Interface I TNC

Model CABLE CONNECTOR

Specific Feature PANEL SEALED

Max Frequency (GHz) 11

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Cable Standard RD 178|RG 178DS|RG 196DS

Cable Attachment CLAMP TYPE

Cable Groups 2/50 D

Mating System SCREW-ON

Body Plating NICKEL
