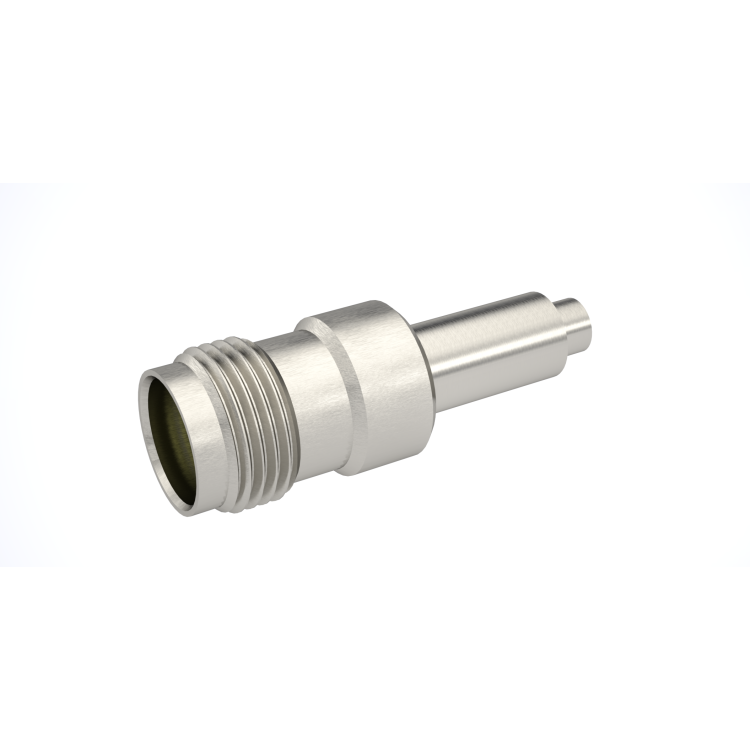

TNC / STRAIGHT JACK CRIMP TYPE CABLE 2.6/50 S+D

R143237000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions
3D.IGS
TNC / STRAIGHT JACK CRIMP TYPE CABLE 2.6/50 S+D

R143237000

Brand RADIALL

Product Type Connectors

Interface I TNC

Model CABLE CONNECTOR

Max Frequency (GHz) 11

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK

Gender 1 FEMALE

Cable Standard KX 22A, RG 188, RG 316

Cable Attachment CRIMP TYPE, FULL CRIMP TYPE

Cable Groups 2.6/50 S

Mating System SCREW-ON

Center Contact Plating GOLD 0.5 OVER NICKEL 2

Body Plating NICKEL 2
