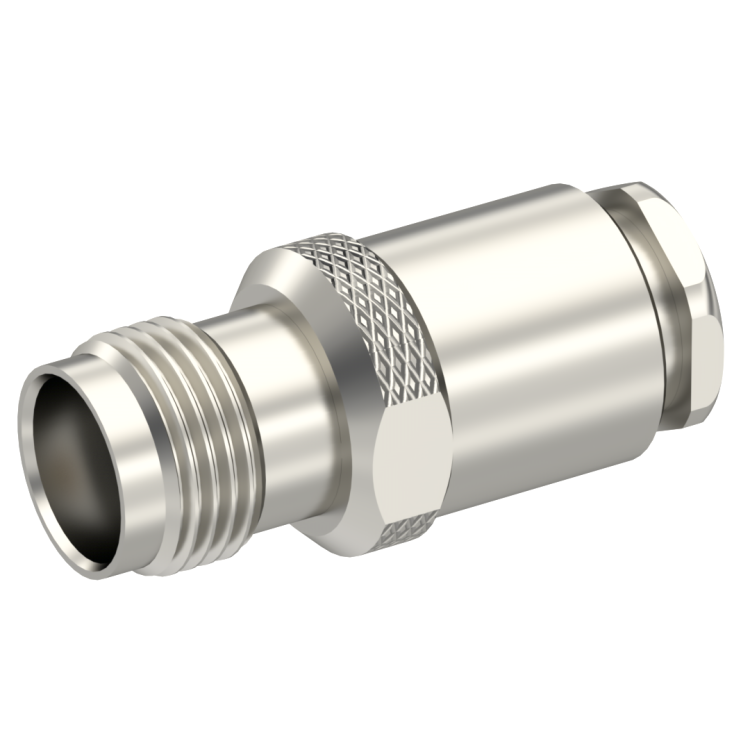

TNC / STRAIGHT JACK CLAMP TYPE CABLE 6/75+93
R143210000 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
Click here to check for distribution inventory
R143210000
Brand RADIALL
Product Type Connectors
Interface I TNC
Model CABLE CONNECTOR
Max Frequency (GHz) 11
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 6A, RG 59, RG 62
Cable Attachment CLAMP TYPE
Cable Groups 6/75 S, 6/93 S
Mating System SCREW-ON
Center Contact Plating GOLD 0.5 OVER NICKEL 2
Body Plating NICKEL 2
