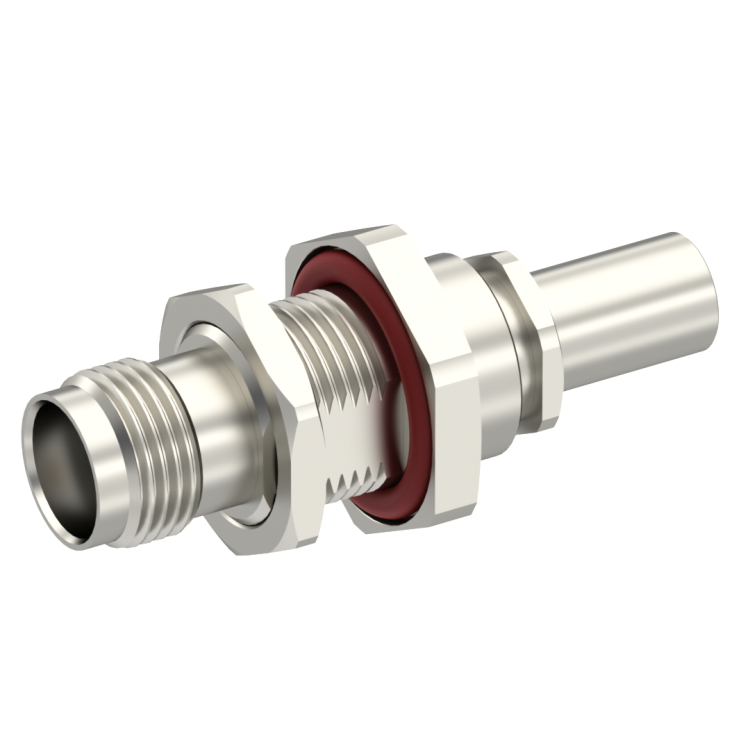

TNC / STRAIGHT BULKHEAD JACK PANEL SEAL R. MOUNT CRIMP TYPE - CABLE 6/75+93

R143328000

Brand: RADIALL

Product Type: Connectors

Interface I: TNC

Model: CABLE CONNECTOR

Specific Feature: PANEL SEALED

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KX 6A, RG 59, RG 62

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 6/75 S, 6/93 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
TNC / STRAIGHT BULKHEAD JACK PANEL SEAL R. MOUNT CRIMP TYPE - CABLE 6/75+93

R143328000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
Cabling Instructions
3D.IGS
3D.STEP
