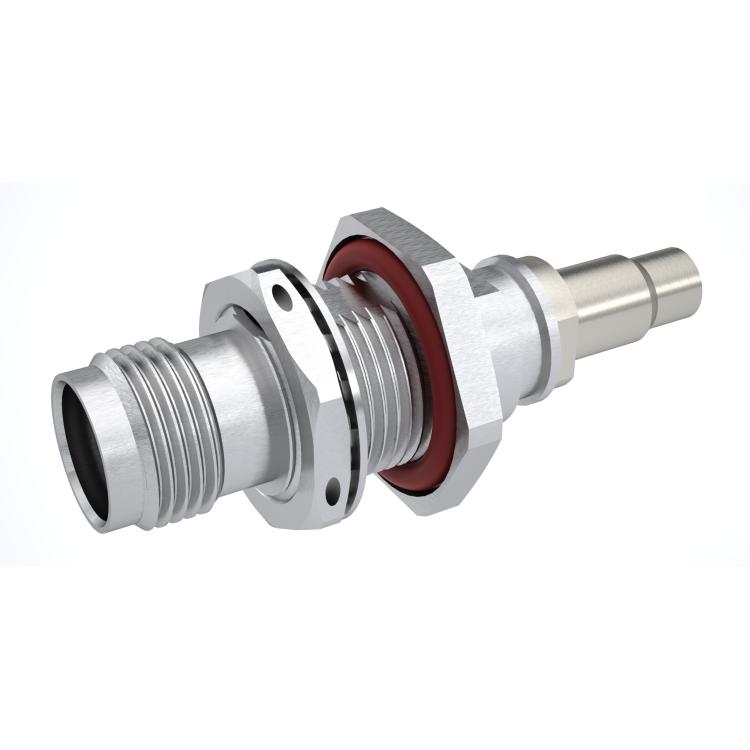

TNC / STRAIGHT BULKHEAD JACK PANEL SEAL R. MOUNT CRIMP TYPE - CABLE 4.13/50

R143340700

Brand: RADIALL

Product Type: Connectors

Interface I: TNC

Model: CABLE CONNECTOR

Specific Feature: PANEL SEALED

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: 1703/93, 50 PFCFB

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 4.13/50

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: PASSIVATED

OR
TNC / STRAIGHT BULKHEAD JACK PANEL SEAL R. MOUNT CRIMP TYPE - CABLE 4.13/50

R143340700 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
