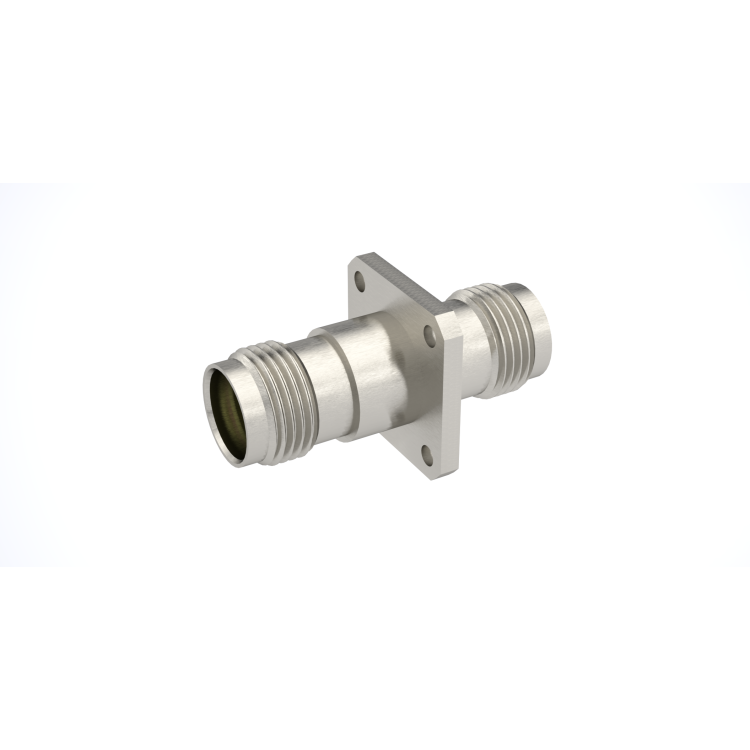

TNC / SQUARE FLANGE FEMALE-FEMALE ADAPTER

R143710000

Brand: RADIALL

Product Type: Adapters

Interface I: TNC

Interface II: TNC

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK/JACK

Gender 1: FEMALE

Gender 2: FEMALE

Mating System: SCREW-ON

Mating System 2: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
TNC / SQUARE FLANGE FEMALE-FEMALE ADAPTER

R143710000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
