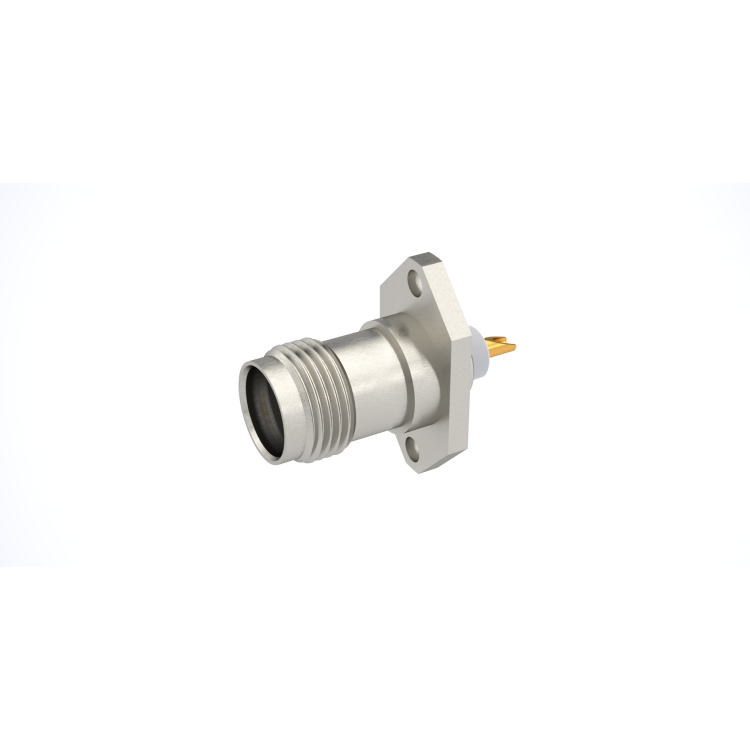

TNC / 2 HOLE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R143453000

Brand: RADIALL

Product Type: Connectors

Interface I: TNC

Model: PANEL RECEPTACLE

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 2 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: SOLDER POT

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
TNC / 2 HOLE FLANGE JACK RECEPTACLE WITH SOLDER POT CONTACT

R143453000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
