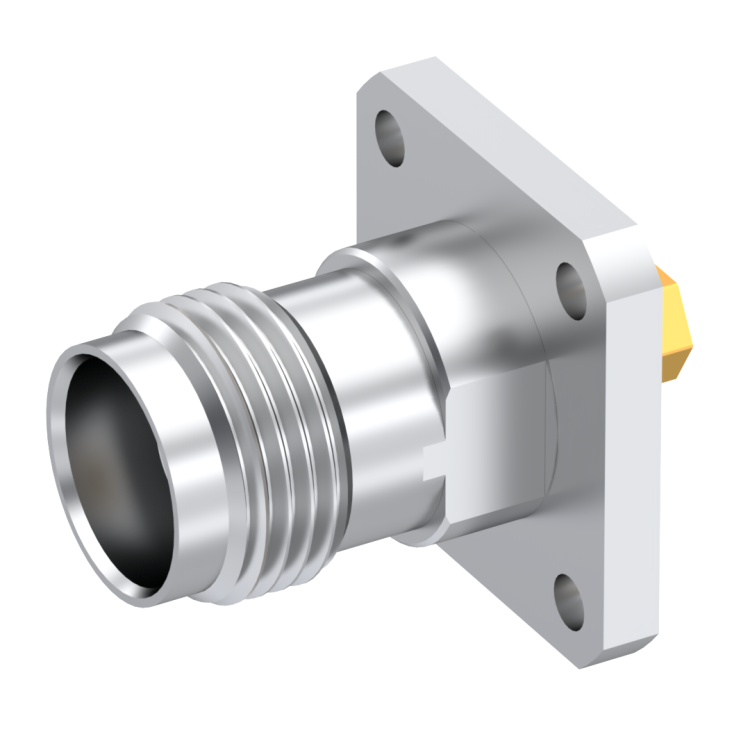

TNC 18 / STRAIGHT SQUARE FLANGE JACK SOLDER TYPE - CABLE .085
R143272700 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R143272700
Brand RADIALL
Product Type Connectors
Interface I TNC 18
Model CABLE CONNECTOR
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 4 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Cable Standard KS 1, RG 405
Cable Attachment SOLDER TYPE
Cable Groups .085''/50 SR
Mating System SCREW-ON
Center Contact Plating GOLD 2.5 OVER NICKEL 2
Body Plating PASSIVATED
