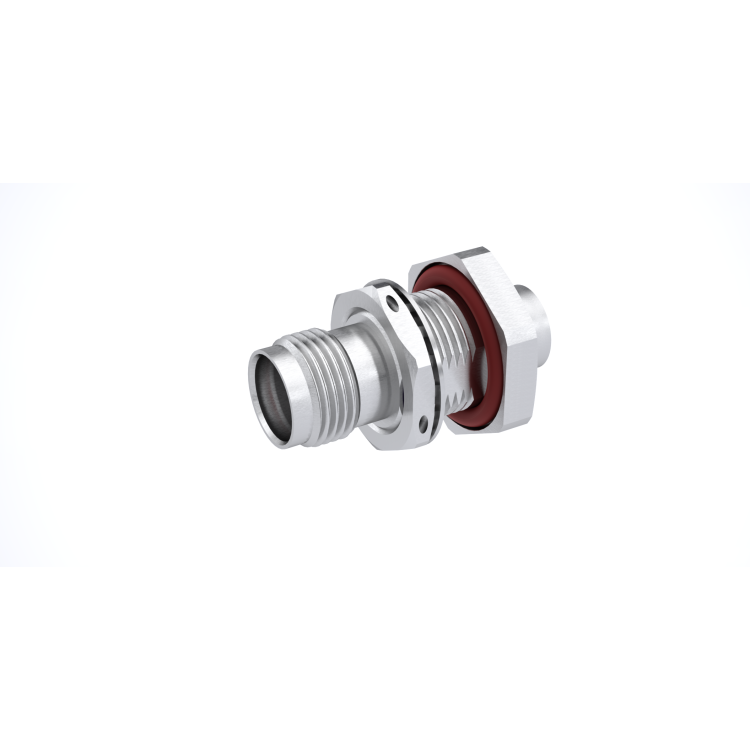

TNC 18 / STRAIGHT BULKHEAD JACK PANEL SEAL REAR MOUNT SOLDER TYPE - CABLE .250
R143322700 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R143322700
Brand RADIALL
Product Type Connectors
Interface I TNC 18
Model CABLE CONNECTOR
Specific Feature PANEL SEALED
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard KS 3, RG 401
Cable Attachment SOLDER TYPE
Cable Groups .250''/50 SR
Mating System SCREW-ON
Center Contact Plating GOLD 2.5 OVER NICKEL 2
Body Plating PASSIVATED
