MCC12 / STRAIGHT FLOATING PLUG SOLDER TYPE FOR CABLE SHF2.4M - NSX-MPX SERIES

R199012283 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
3D.IGS
3D.STEP

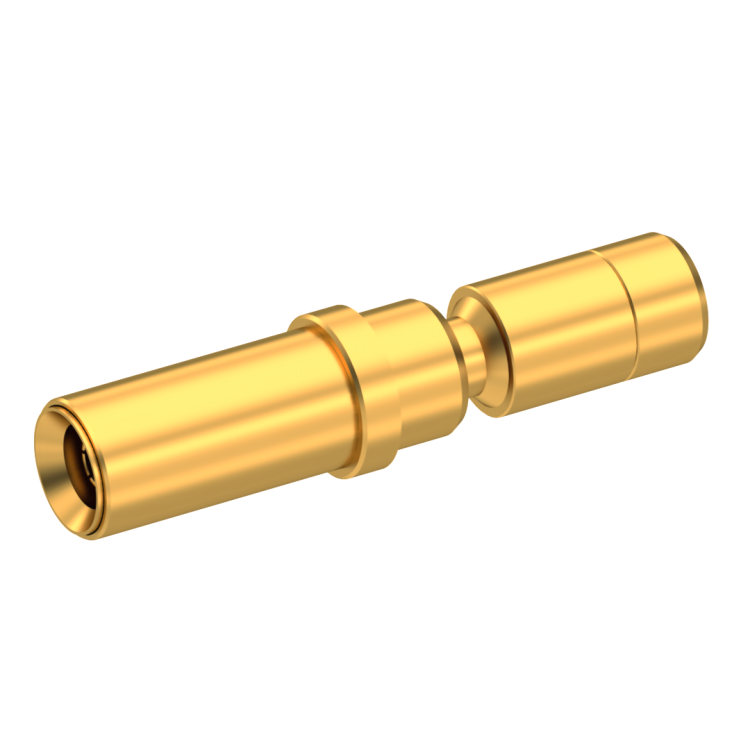

MCC12 / STRAIGHT FLOATING PLUG SOLDER TYPE FOR CABLE SHF2.4M - NSX-MPX SERIES

R199012283

Brand RADIALL

Product Type Connectors

Interface I MCC12

Model CABLE CONNECTOR

Specific Feature COAXIAL CONTACT

Max Frequency (GHz) 40

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG

Gender 1 FEMALE

Cable Standard SHF 2.4 M

Cable Attachment SOLDER TYPE

Cable Groups SPECIAL

Mating System SLIDE-ON

Center Contact Plating GOLD 1.3 OVER NICKEL 2

Body Plating GOLD 1.3 OVER NICKEL 2
