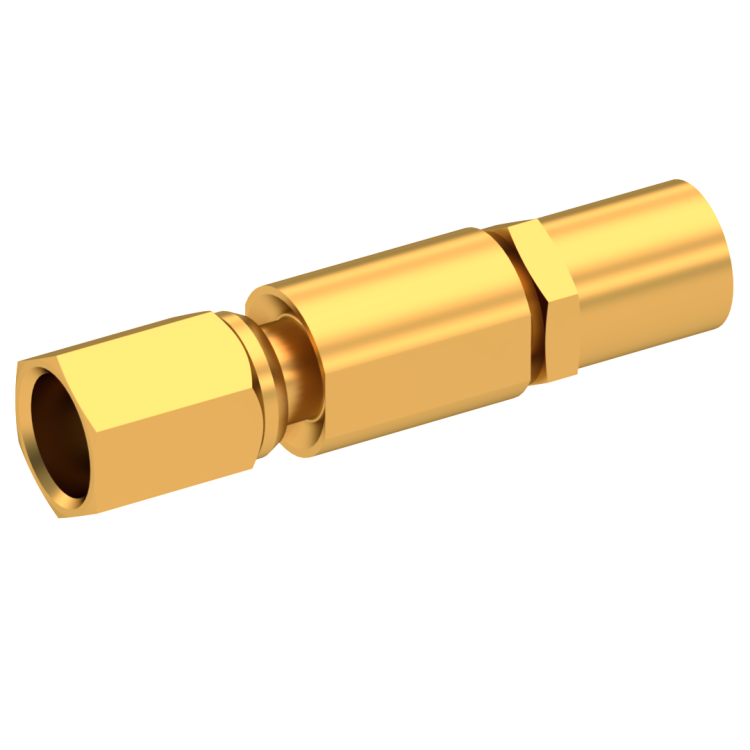

SSMC / STRAIGHT PLUG FEMALE CRIMP TYPE FOR 2.6/50 S CABLE GOLD

7002-1572-003 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
Cabling Instructions
SSMC / STRAIGHT PLUG FEMALE CRIMP TYPE FOR 2.6/50 S CABLE GOLD

7002-1572-003

Brand AEP

Product Type Connectors

Interface I SSMC

Model CABLE CONNECTOR

Max Frequency (GHz) 12.4

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG

Gender 1 FEMALE

Cable Standard RG 174|RG 179|RG 316|M17/113|M17/119|M17/172|M17/173

Cable Attachment CRIMP TYPE

Cable Groups 2.6/50 S

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
