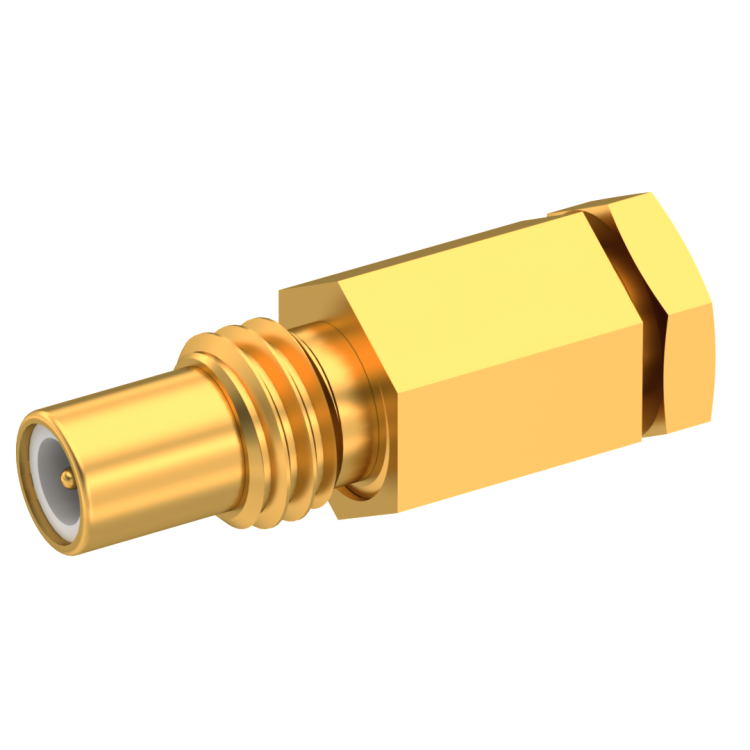

SSMC / STRAIGHT JACK MALE SOLDER CLAMP FOR .085''/50 SR GOLD

7101-1541-010 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Cabling Instructions
SSMC / STRAIGHT JACK MALE SOLDER CLAMP FOR .085''/50 SR GOLD

7101-1541-010

Brand AEP

Product Type Connectors

Interface I SSMC

Model CABLE CONNECTOR

Max Frequency (GHz) 12.4

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK

Gender 1 MALE

Cable Standard RG 405|M17/133

Cable Attachment SOLDER CLAMP

Cable Groups .085''/50 SR

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
