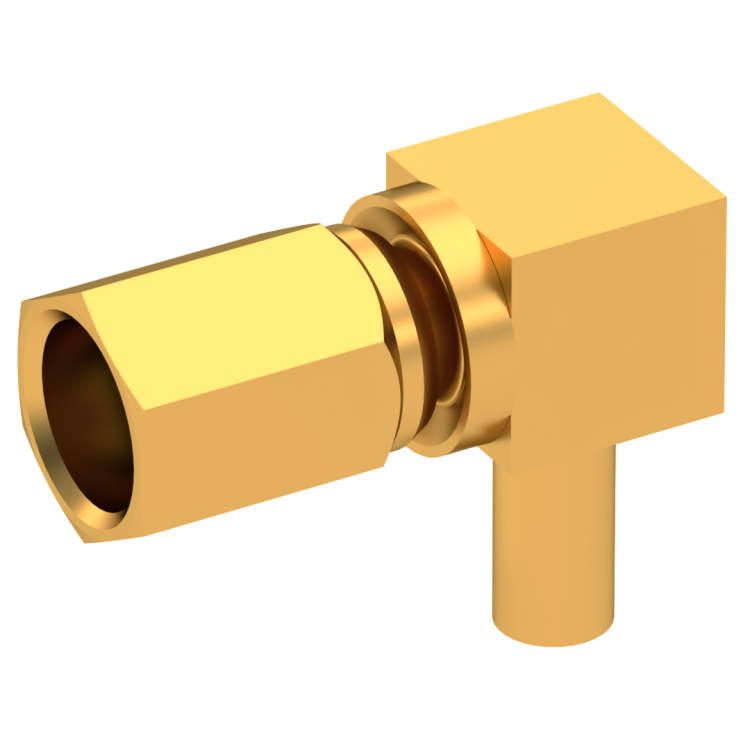

SSMC / RIGHT ANGLE PLUG FEMALE SOLDER TYPE FOR .056

7105-1561-021

Brand: AEP

Product Type: Connectors

Interface I: SSMC

Model: CABLE CONNECTOR

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: RIGHT ANGLE

Connector Type: PLUG

Gender 1: FEMALE

Cable Attachment: SOLDER TYPE

Cable Groups: .056"/50 SR

Mating System: SCREW-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

Click here to check availability
OR
SSMC / RIGHT ANGLE PLUG FEMALE SOLDER TYPE FOR .056" SR GOLD

7105-1561-021 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
