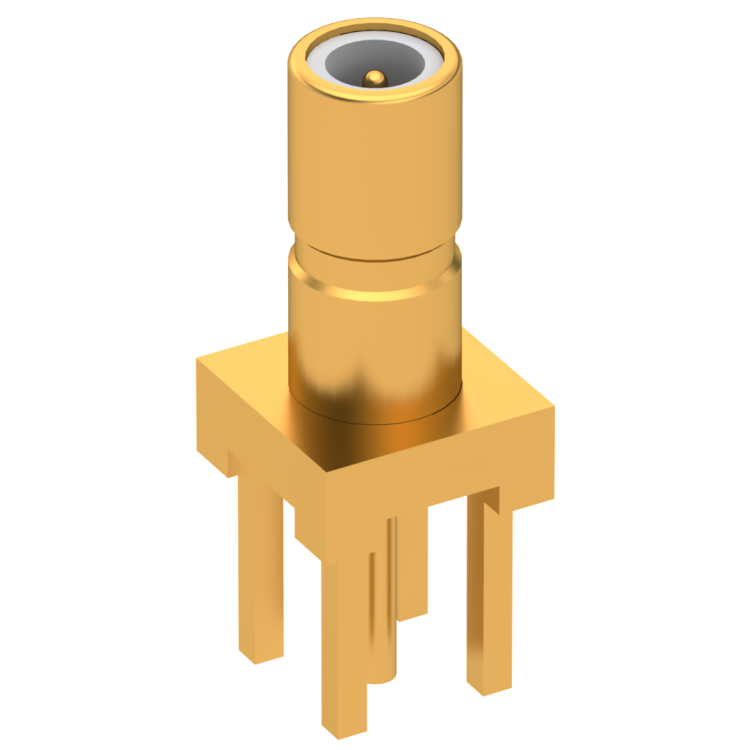

SSMB / STRAIGHT JACK MALE GOLD

7209-1511-011 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
3D.STEP
SSMB / STRAIGHT JACK MALE GOLD

7209-1511-011

Brand AEP

Product Type Connectors

Interface I SSMB

Model PCB RECEPTACLE

Max Frequency (GHz) 12.4

Impedance (Ohm) 50

Geometry STRAIGHT

PCB Mounting SOLDER LEGS

Connector Type JACK

Gender 1 MALE

Mating System SNAP-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
