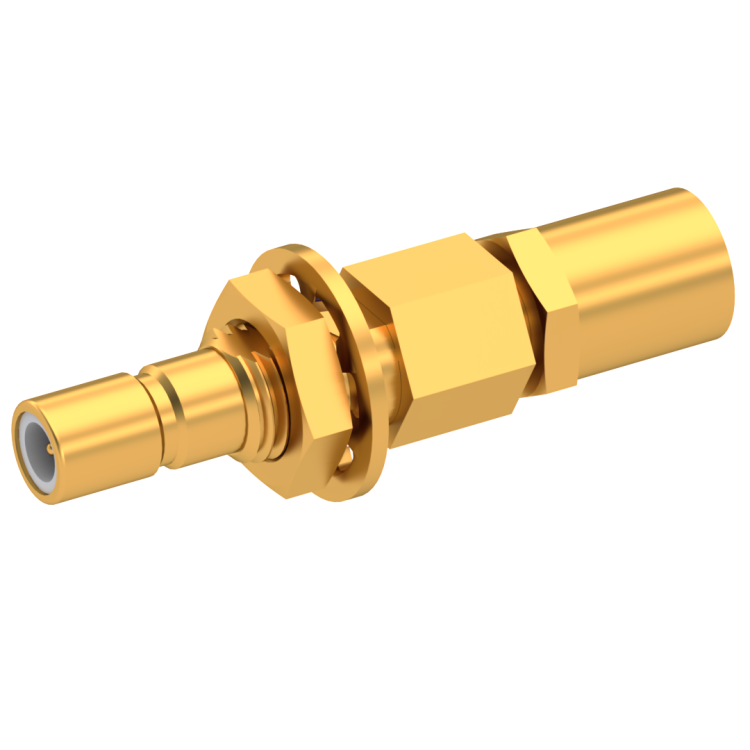

SSMB / STRAIGHT JACK MALE CRIMP TYPE FOR 2/50 D CABLE GOLD

7203-1571-005

Brand: AEP

Product Type: Connectors

Interface I: SSMB

Model: CABLE CONNECTOR

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: MALE

Cable Standard: RD 178|RG 178DS|RG 196DS

Cable Attachment: CRIMP TYPE

Cable Groups: 2/50 D

Mating System: SNAP-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SSMB / STRAIGHT JACK MALE CRIMP TYPE FOR 2/50 D CABLE GOLD

7203-1571-005 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Cabling Instructions
