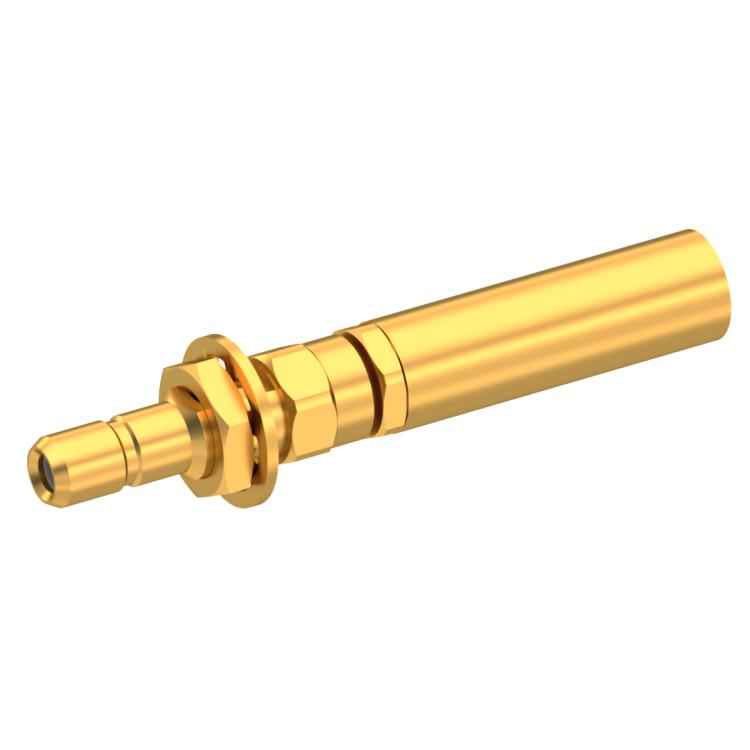

SSMB / STRAIGHT BULKHEAD JACK CRIMP TYPE CABLE 2.6/50 S

R203317000

Brand: RADIALL

Product Type: Connectors

Interface I: SSMB

Model: CABLE CONNECTOR

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: MALE

Cable Standard: KX 22A, RG 188, RG 316

Cable Attachment: CRIMP TYPE

Cable Groups: 2.6/50 S

Mating System: SNAP-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.5 OVER NICKEL 2

OR
SSMB / STRAIGHT BULKHEAD JACK CRIMP TYPE CABLE 2.6/50 S

R203317000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
