SMP-LOCK / STRAIGHT MALE PCB RECEPTACLE

R222L00040 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
3D.IGS
3D.STEP

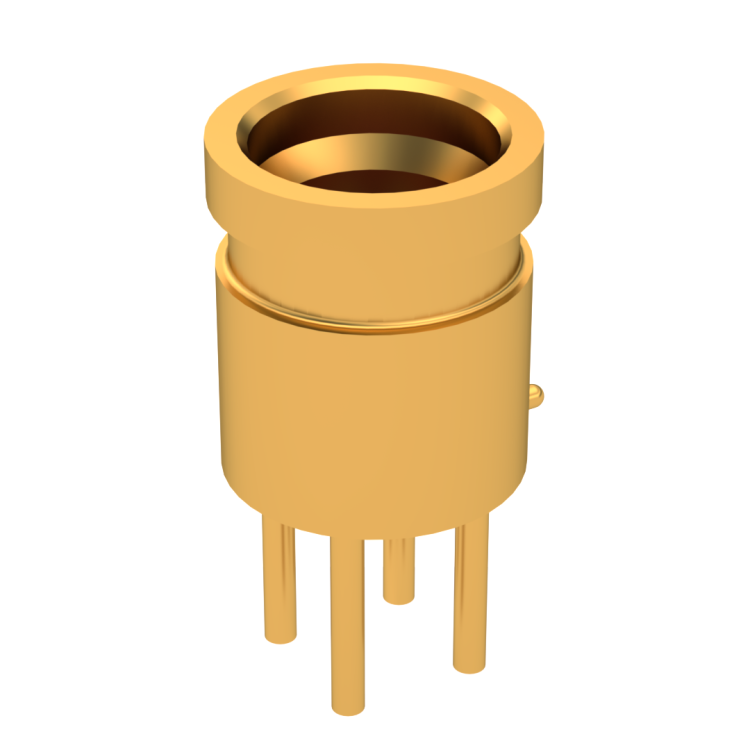

SMP-LOCK / STRAIGHT MALE PCB RECEPTACLE

R222L00040

Brand RADIALL

Product Type Connectors

Interface I SMP-LOCK

Model PCB RECEPTACLE

Max Frequency (GHz) 40

Impedance (Ohm) 50

Geometry STRAIGHT

PCB Mounting SOLDER LEGS

Connector Type JACK

Gender 1 MALE

Mating System LOCK-ON

Center Contact Plating GOLD 1.3 OVER NICKEL 1.3

Body Plating GOLD OVER NICKEL

Click here to check availability
