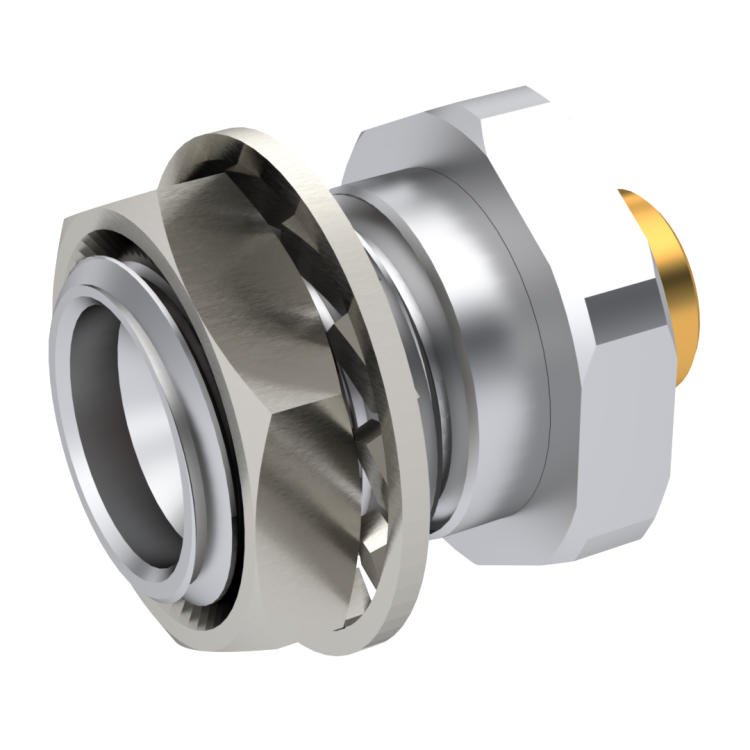

SMP / BULKHEAD STRAIGHT MALE JACK SMOOTH BORE SOLDER TYPE CABLE .085

R222302702

Brand: RADIALL

Product Type: Connectors

Interface I: SMP

Model: CABLE CONNECTOR

Max Frequency (GHz): 40

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: MALE

Cable Standard: KS 1, RG 405

Cable Attachment: SOLDER TYPE

Cable Groups: .085''/50 SR

Mating System: SNAP-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 1.3

Body Plating: PASSIVATED

OR
SMP / BULKHEAD STRAIGHT MALE JACK SMOOTH BORE SOLDER TYPE CABLE .085

R222302702 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
3D.IGS
3D.STEP
