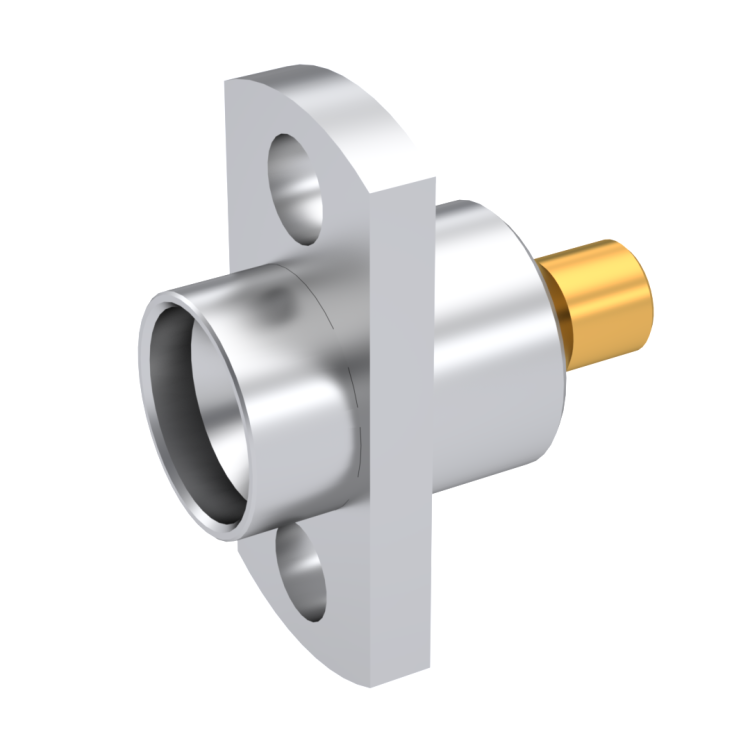

SMP / 2 HOLE FLANGE MALE JACK FULL DETENT SOLDER TYPE CABLE .047
R222251000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R222251000
Brand RADIALL
Product Type Connectors
Interface I SMP
Model CABLE CONNECTOR
Max Frequency (GHz) 40
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 2 HOLE FLANGE
Connector Type JACK
Gender 1 MALE
Cable Standard C17/151-01, UT 47
Cable Attachment SOLDER TYPE
Cable Groups .047''/50 SR
Mating System SNAP-ON
Center Contact Plating GOLD 1.3 OVER NICKEL 1.3
Body Plating PASSIVATED
