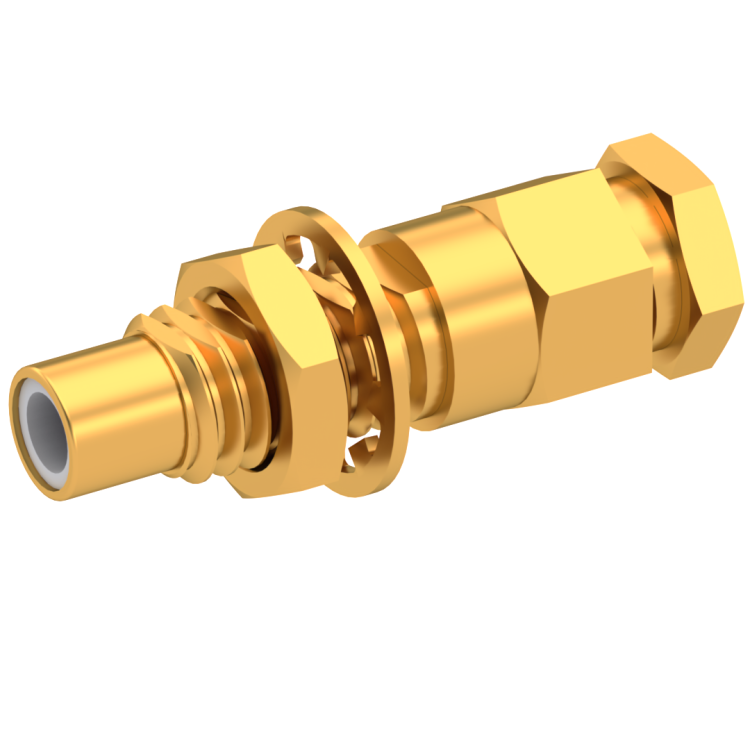

SMC / STRAIGHT JACK MALE SOLDER CLAMP FOR .141''/50 SR GOLD

1003-1541-009

Brand: AEP

Product Type: Connectors

Interface I: SMC

Model: CABLE CONNECTOR

Max Frequency (GHz): 10

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: MALE

Cable Standard: KS 2|RG 402|M17/130

Cable Attachment: SOLDER CLAMP

Cable Groups: .141''/50 SR

Mating System: SCREW-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SMC / STRAIGHT JACK MALE SOLDER CLAMP FOR .141''/50 SR GOLD

1003-1541-009 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
Cabling Instructions
