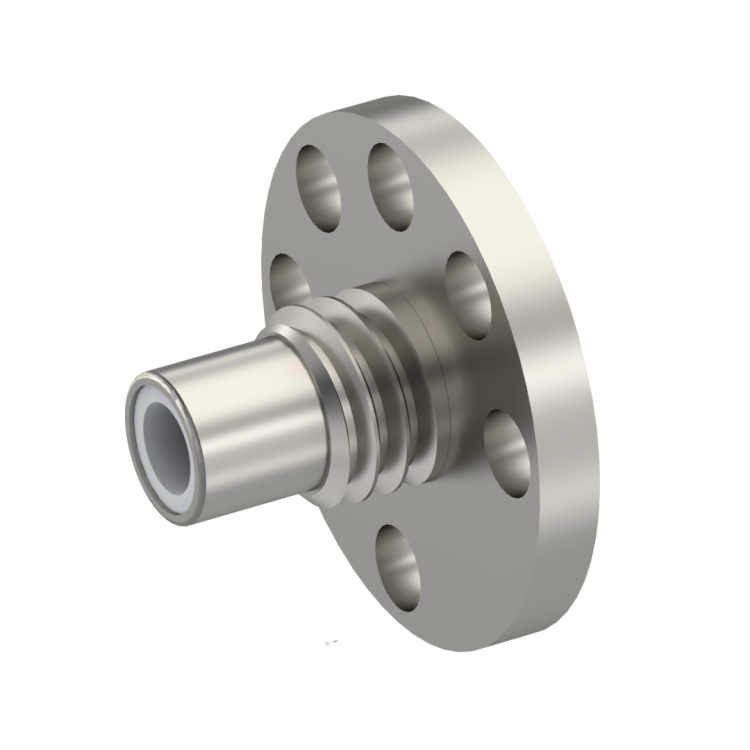

SMC / STRAIGHT JACK MALE NICKEL NON-CAPTIVE CONTACT

1029-7211-002

Brand: AEP

Product Type: Connectors

Interface I: SMC

Model: PANEL RECEPTACLE

Specific Feature: NON-CAPTIVE CONTACT

Max Frequency (GHz): 10

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: TOP-LAUNCH

PCB Mounting: TURRET CONTACT

Connector Type: JACK

Gender 1: MALE

Mating System: SCREW-ON

Center Contact Termination: STRIPLINE

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: NICKEL

OR
SMC / STRAIGHT JACK MALE NICKEL NON-CAPTIVE CONTACT

1029-7211-002 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
