SMC / STRAIGHT JACK FLANGE TYPE HERMETIC DIRECT CRIMPING - CABLE RG178

R112345027 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Datasheets

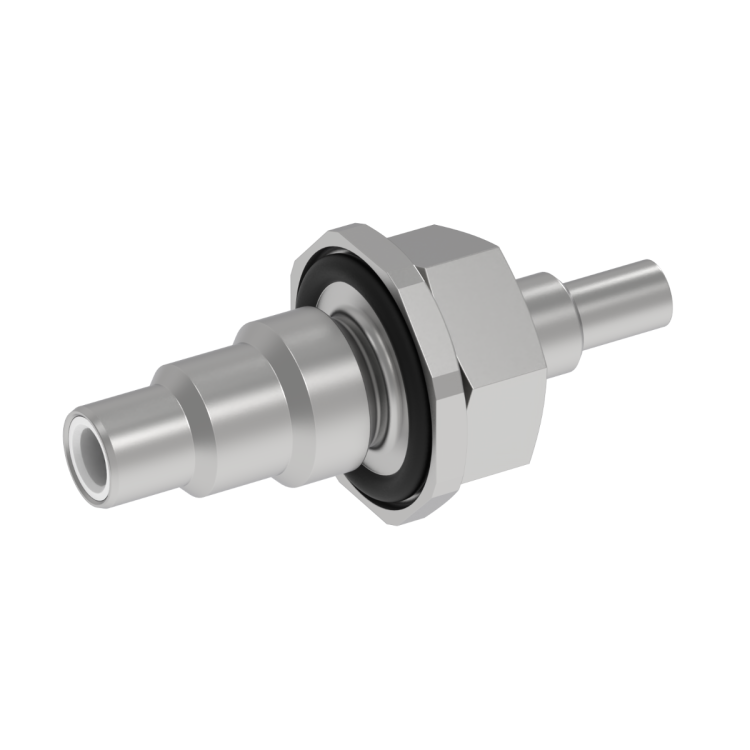

SMC / STRAIGHT JACK FLANGE TYPE HERMETIC DIRECT CRIMPING - CABLE RG178

R112345027

Brand RADIALL

Product Type Connectors

Interface I SMC

Model CABLE CONNECTOR

Max Frequency (GHz) 10

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 MALE

Cable Standard RG 178

Cable Attachment CRIMP TYPE

Cable Groups 2/50 S

Mating System SCREW-ON

Center Contact Plating GOLD OVER NICKEL

Body Plating BBR2
