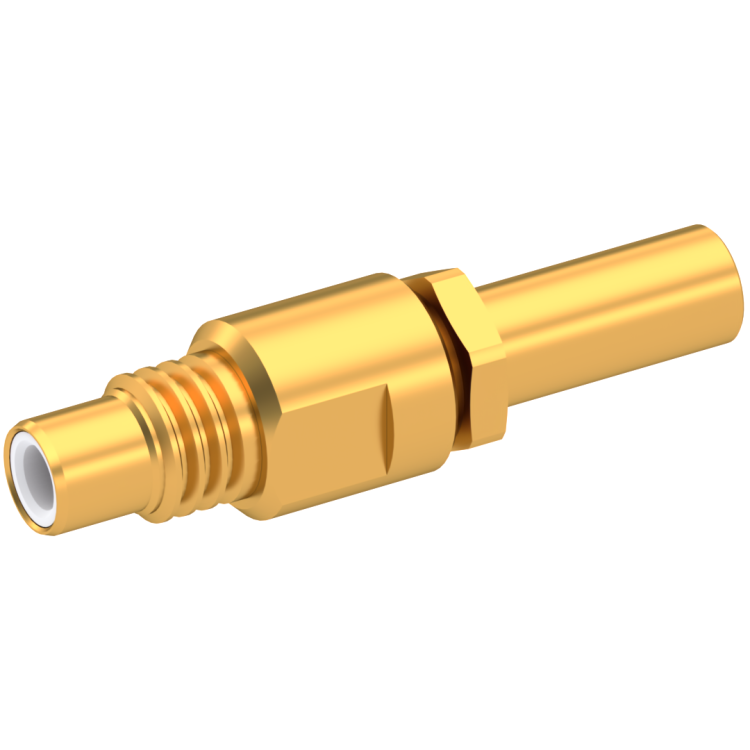

SMC / STRAIGHT JACK CRIMP TYPE CABLE 2.6/50+75 S

R112239000

Brand: RADIALL

Product Type: Connectors

Interface I: SMC

Model: CABLE CONNECTOR

Max Frequency (GHz): 10

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: JACK

Gender 1: MALE

Cable Standard: KX 22A, RG 179, RG 187, RG 188, RG 316

Cable Attachment: CRIMP TYPE

Cable Groups: 2.6/50 S, 2.6/75 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

Click here to check availability
OR
SMC / STRAIGHT JACK CRIMP TYPE CABLE 2.6/50+75 S

R112239000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
