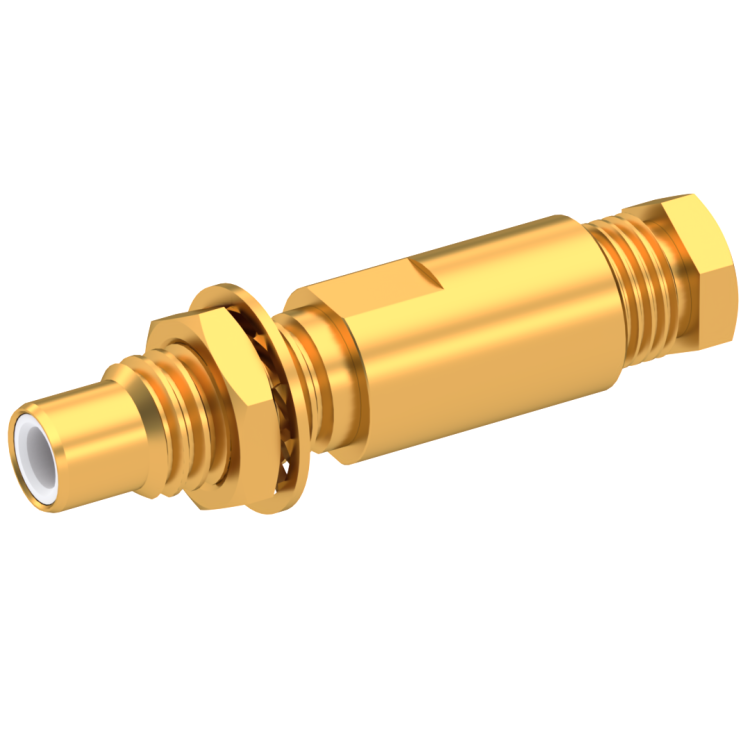

SMC / STRAIGHT BULKHEAD JACK CLAMP TYPE REAR MOUNT - CABLE 2.6/50+75 S
R112305000 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R112305000
Brand RADIALL
Product Type Connectors
Interface I SMC
Model CABLE CONNECTOR
Max Frequency (GHz) 10
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 MALE
Cable Standard KX 22A, RG 179, RG 187, RG 188, RG 316
Cable Attachment CLAMP TYPE
Cable Groups 2.6/50 S, 2.6/75 S
Mating System SCREW-ON
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating GOLD 0.2 OVER NICKEL 2
