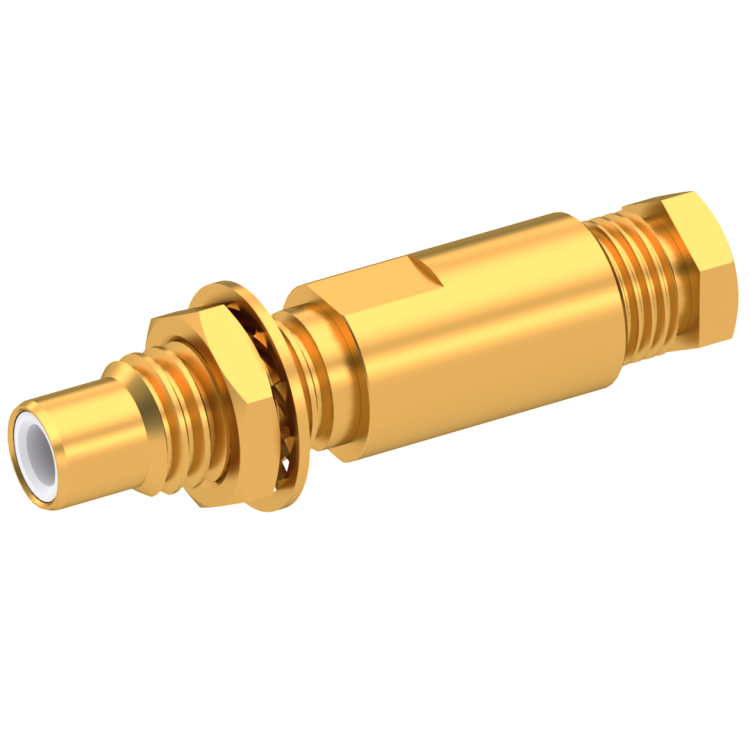

SMC / STRAIGHT BULKHEAD JACK CLAMP TYPE REAR MOUNT - CABLE 2/50 S

R112303000

Brand: RADIALL

Product Type: Connectors

Interface I: SMC

Model: CABLE CONNECTOR

Max Frequency (GHz): 10

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: MALE

Cable Standard: KX 21, RG 178, RG 196

Cable Attachment: CLAMP TYPE

Cable Groups: 2/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
SMC / STRAIGHT BULKHEAD JACK CLAMP TYPE REAR MOUNT - CABLE 2/50 S

R112303000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
