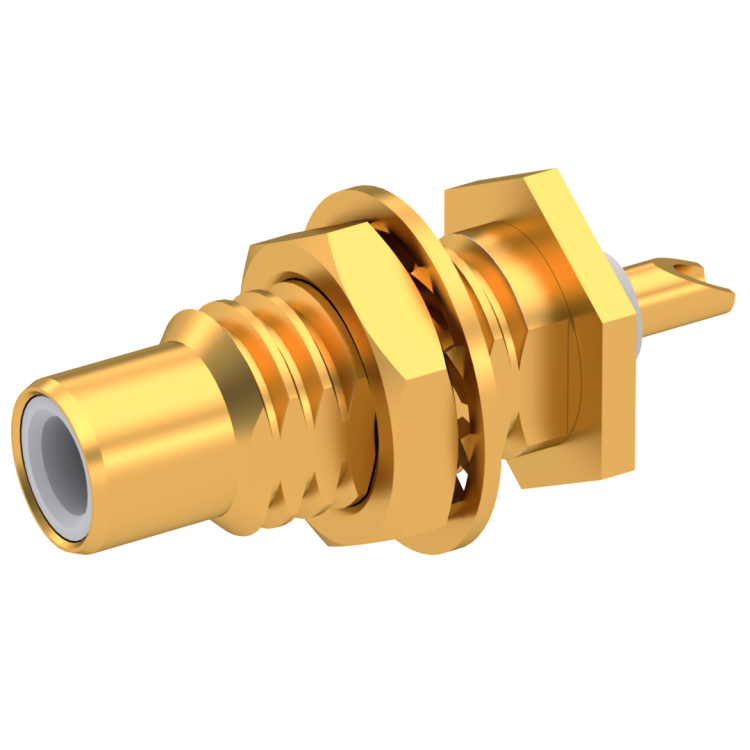

SMC / BULKHEAD JACK RECEPTACLE REAR MOUNT - SOLDER POT

R112554000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
3D.IGS
SMC / BULKHEAD JACK RECEPTACLE REAR MOUNT - SOLDER POT

R112554000

Brand RADIALL

Product Type Connectors

Interface I SMC

Model PANEL RECEPTACLE

Max Frequency (GHz) 10

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 MALE

Mating System SCREW-ON

Center Contact Termination SOLDER POT

Center Contact Plating GOLD 1.3 OVER NICKEL 2

Body Plating GOLD 0.2 OVER NICKEL 2
