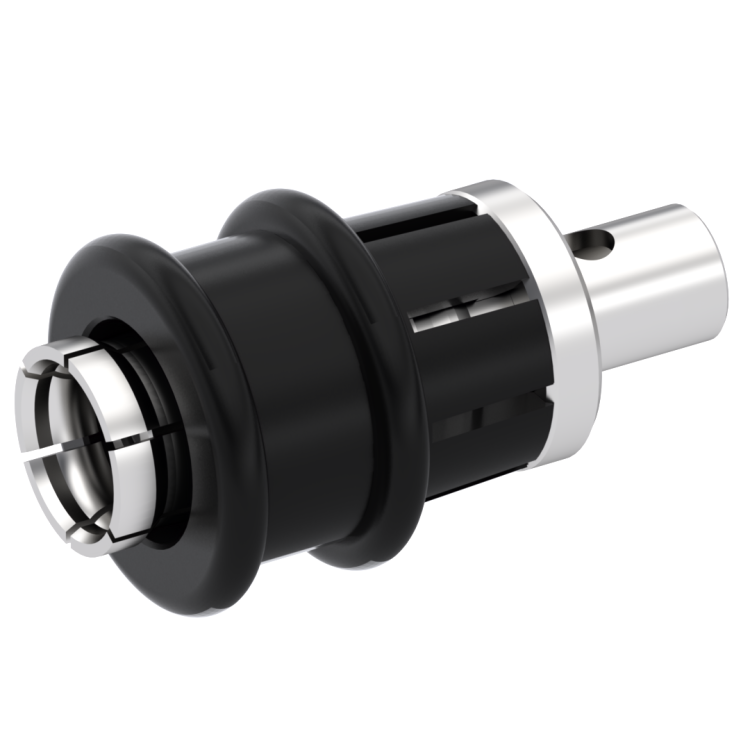

SMB / STRAIGHT PLUG SOLDER TYPE CABLE .085

R117053807

Brand: RADIALL

Product Type: Connectors

Interface I: SMB

Model: CABLE CONNECTOR

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: FEMALE

Cable Standard: KS 1, RG 405

Cable Attachment: SOLDER TYPE

Cable Groups: .085''/50 SR

Mating System: LOCK-ON

Center Contact Plating: GOLD 0.8 OVER COPPER 0.5

Body Plating: BBR

OR
SMB / STRAIGHT PLUG SOLDER TYPE CABLE .085

R117053807 - Please contact Radiall for additional information

For REACH and RoHS status, contact Radiall for more information
