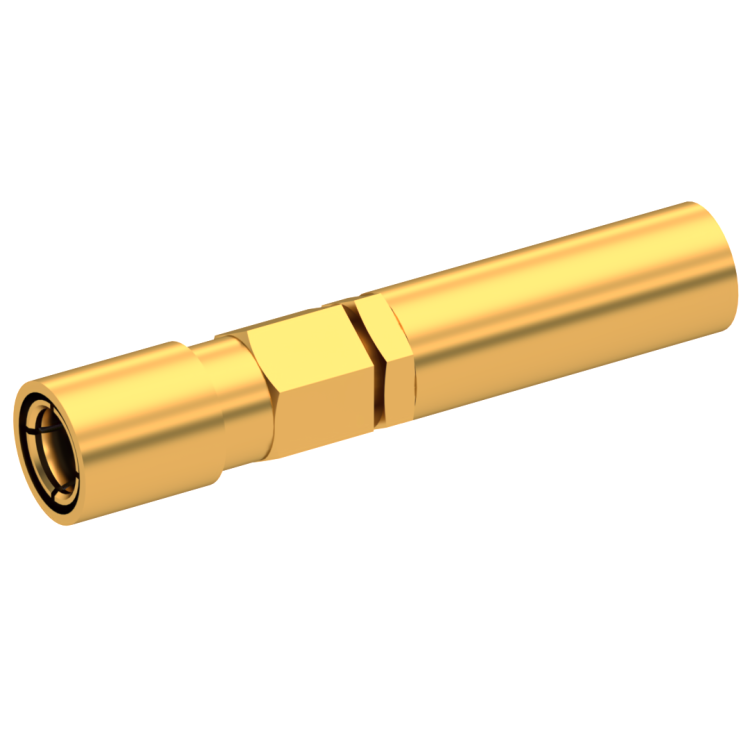

SMB / STRAIGHT PLUG FEMALE CRIMP TYPE FOR 2.6/50 S CABLE GOLD QPL MIL-39012

2002-1571-803 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cabling Instructions
SMB / STRAIGHT PLUG FEMALE CRIMP TYPE FOR 2.6/50 S CABLE GOLD QPL MIL-39012

2002-1571-803

Brand AEP

Product Type Connectors

Interface I SMB

Model CABLE CONNECTOR

Specific Feature QPL MIL-39012

Max Frequency (GHz) 4

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG

Gender 1 FEMALE

Cable Standard RG 174|RG 179|RG 316|M17/113|M17/119|M17/172|M17/173

Cable Attachment CRIMP TYPE

Cable Groups 2.6/50 S

Mating System SNAP-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
