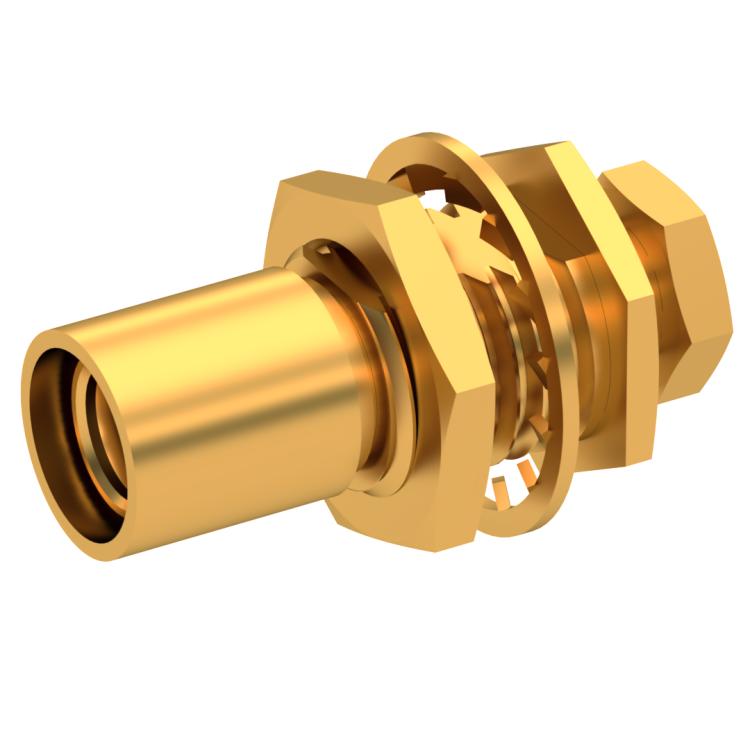

SMB / STRAIGHT PLUG FEMALE CLAMP TYPE FOR 2/50 S CABLE GOLD

2028-1551-002 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cabling Instructions
SMB / STRAIGHT PLUG FEMALE CLAMP TYPE FOR 2/50 S CABLE GOLD

2028-1551-002

Brand AEP

Product Type Connectors

Interface I SMB

Model CABLE CONNECTOR

Max Frequency (GHz) 4

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type PLUG

Gender 1 FEMALE

Cable Standard RG 178|RG 196|M17/93|M17/169

Cable Attachment CLAMP TYPE

Cable Groups 2/50 S

Mating System SNAP-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
