SMB / STRAIGHT PLUG CRIMP TYPE CABLE BSSM742

R114092420 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions
3D.IGS
3D.STEP

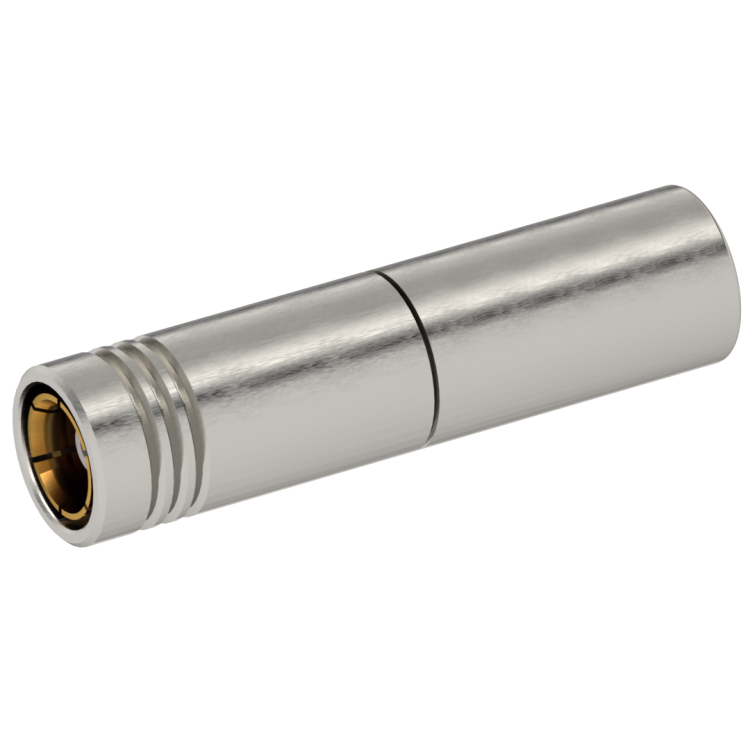

SMB / STRAIGHT PLUG CRIMP TYPE CABLE BSSM742

R114092420

Brand RADIALL

Product Type Connectors

Interface I SMB

Model CABLE CONNECTOR

Max Frequency (GHz) 4

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG

Gender 1 FEMALE

Cable Standard BSSM 742, SHF 142

Cable Attachment CRIMP TYPE, FULL CRIMP TYPE

Cable Groups 5/50 S

Mating System SNAP-ON

Center Contact Plating GOLD 2.5 OVER COPPER 2.5

Body Plating NICKEL 2
