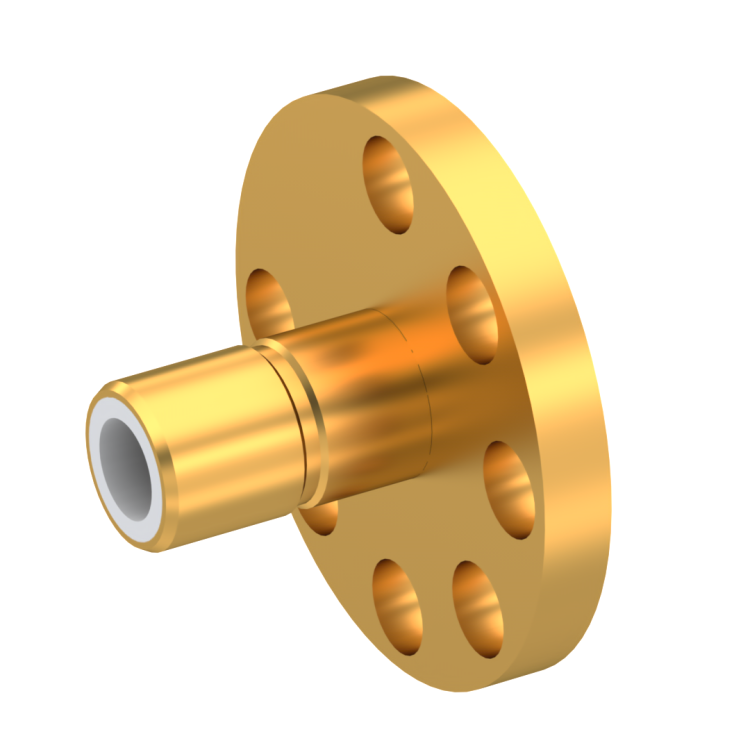

SMB / STRAIGHT JACK MALE GOLD NON-CAPTIVE CONTACT

2029-1211-003

Brand: AEP

Product Type: Connectors

Interface I: SMB

Model: PANEL RECEPTACLE

Specific Feature: NON-CAPTIVE CONTACT

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: TOP-LAUNCH

PCB Mounting: TURRET CONTACT

Connector Type: JACK

Gender 1: MALE

Mating System: SNAP-ON

Center Contact Termination: STRIPLINE

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

This part is available on Amazon USA
Click here to check availability
OR
SMB / STRAIGHT JACK MALE GOLD NON-CAPTIVE CONTACT

2029-1211-003 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
