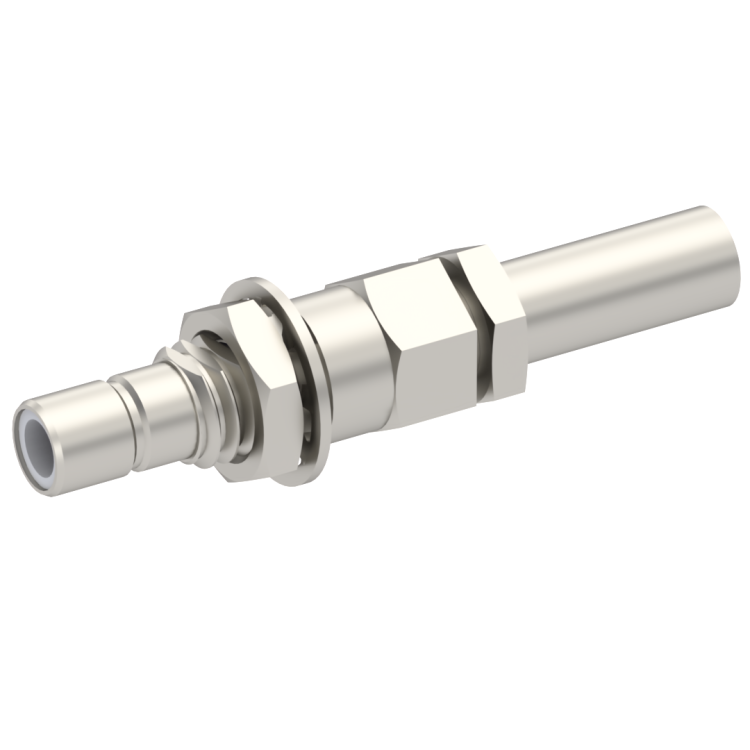

SMB / STRAIGHT JACK MALE CRIMP TYPE FOR 2/50 S CABLE NICKEL

2003-7571-002

Brand: AEP

Product Type: Connectors

Interface I: SMB

Model: CABLE CONNECTOR

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: MALE

Cable Standard: RG 178|RG 196|M17/93|M17/169

Cable Attachment: CRIMP TYPE

Cable Groups: 2/50 S

Mating System: SNAP-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: NICKEL

OR
SMB / STRAIGHT JACK MALE CRIMP TYPE FOR 2/50 S CABLE NICKEL

2003-7571-002 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
